Removing Cover For Front Lock Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front lid.
  2. Release expansion rivets -1-  and pull them out of the cover for the front lock support -2-  .

    Installation:  Align expansion rivets -1-  with the longitudinal axis of the vehicle before locking them.

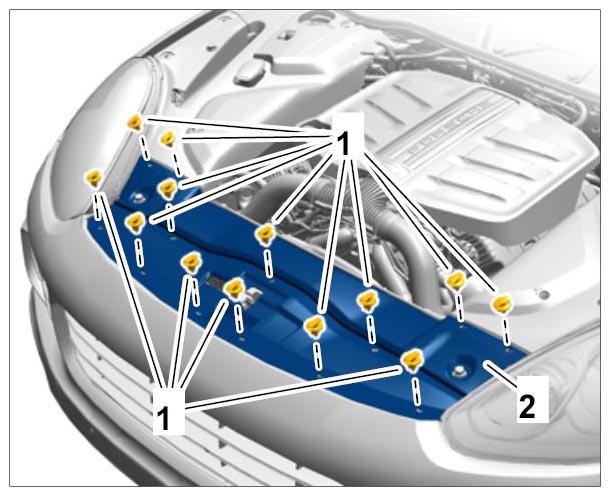

    Fig 1: Identifying Expansion Rivets And Front Lock Support
    G09940678Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull out cover for front lock support -1-  under the headlights and remove it by pulling it upwards.

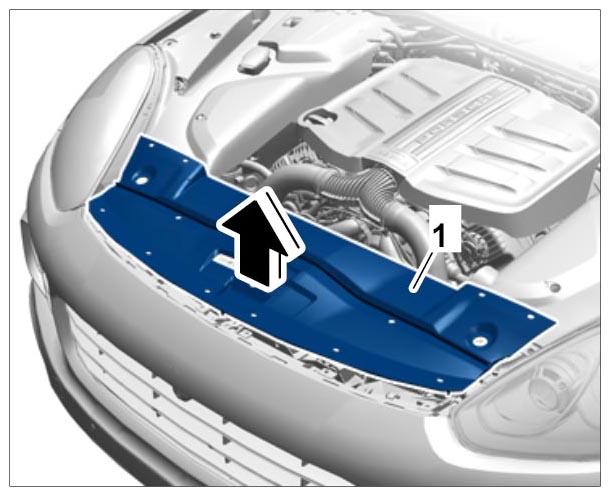

    Fig 2: Removing Cover For Front Lock Support
    G09940679Courtesy of PORSCHE CARS NORTH AMERICA, INC.
