Removing Front Side Section Trim
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Some of the repair illustrations show only one side of the vehicle .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
- These must be carried out as a mirror image of the steps shown for the front and rear .
Information
To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

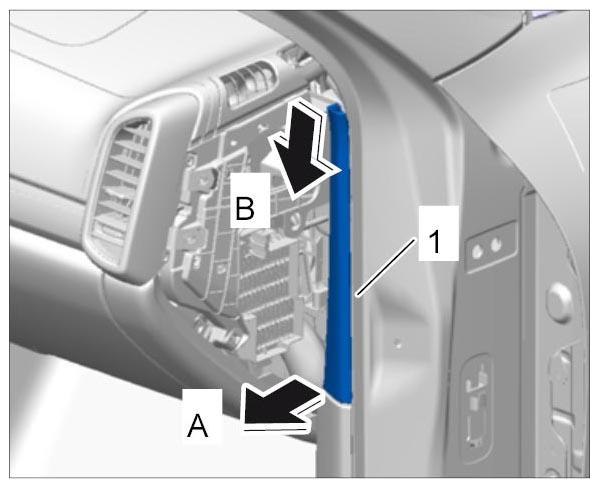

- Unclip front side section trim -1- at the bottom from the locks -A- .
- Pull front side section trim -1- downwards -B- out of the A-pillar trim.
