Installing Front Side Section Trim Panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Some of the repair illustrations show only one side of the vehicle .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
- These must be carried out as a mirror image of the steps shown for the front and rear .
Information
Check that all fixing clips are positioned fully and correctly.
Check that the fixing clips are not bent or broken.
Replace damaged or missing clips with new ones.

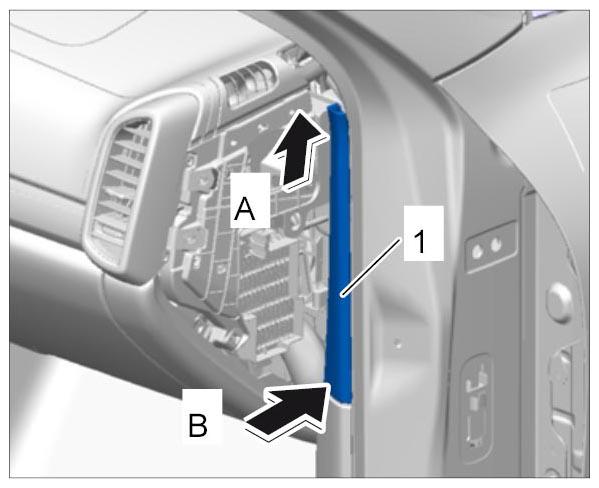

- Push front side section trim -1- upwards -A- over the A-pillar trim.
- Engage lock for front side section trim -1- at the bottom -B- .
