Removing Cover Under Dashboard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

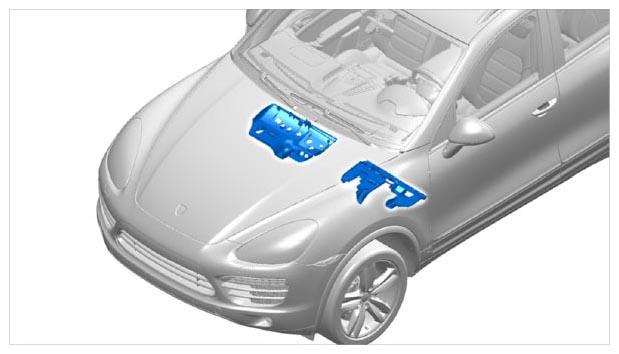

Fig 1: Identifying Cover Under Dashboard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

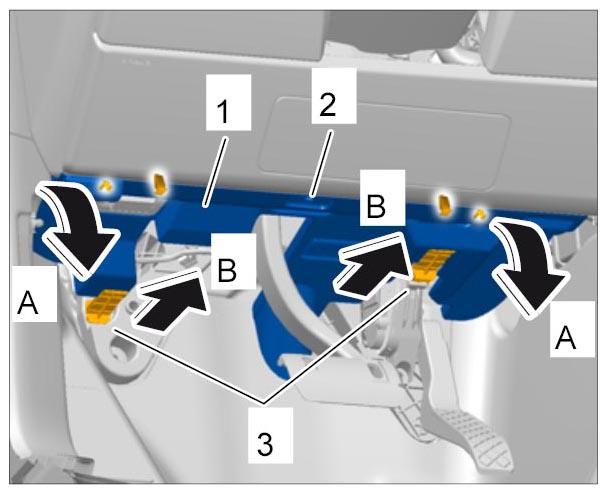

Unscrew and remove fastening screw -2- .
Pull cover under dashboard -1- out of the locks and swivel it down -A- .
Pull cover under dashboard -1- out of the guides -3- (-B- ).

Fig 2: Removing Mounting Screw Of Trim Panel Under Dashboard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

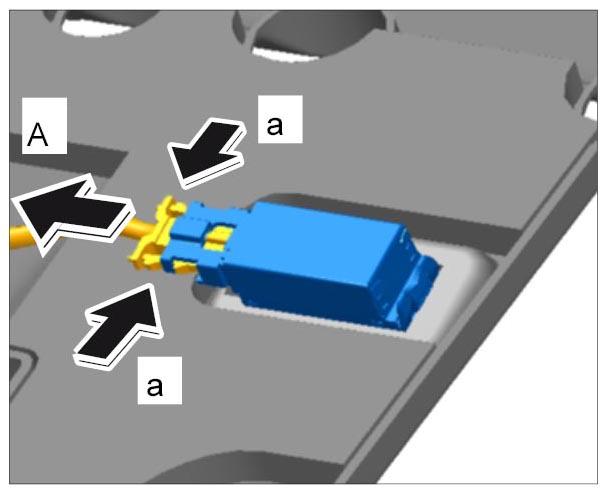

Release electric plug connection for light -a- and disconnect it -A- .

Fig 3: Disconnecting Connector For Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

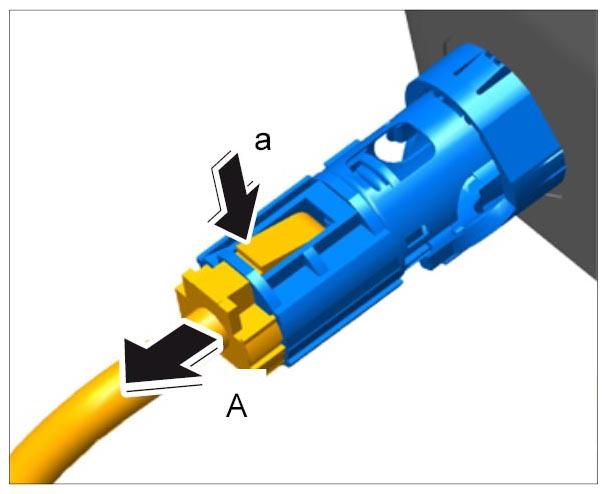

Passenger's side only: Release electric plug connection for plug socket -a- and disconnect it -A- .

Fig 4: Disconnecting Connector At Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
