Removing Cover For Dashboard (Defroster Trim)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

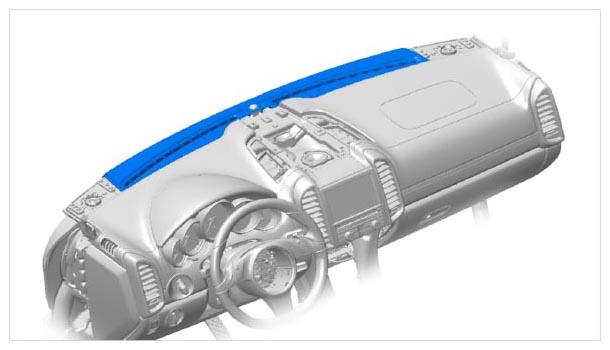

Fig 1: Identifying Cover For Dashboard Installation Position (Defroster Trim)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

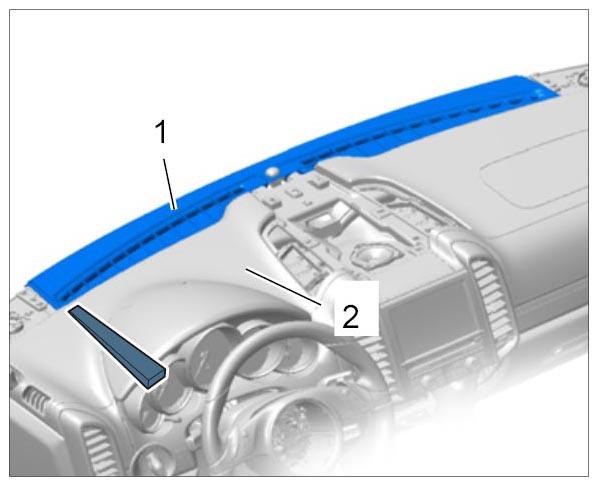

Insert a plastic wedge between the dashboard -2- and defroster trim -1- and unclip defroster trim from left to right.

Fig 2: Removing Defroster Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

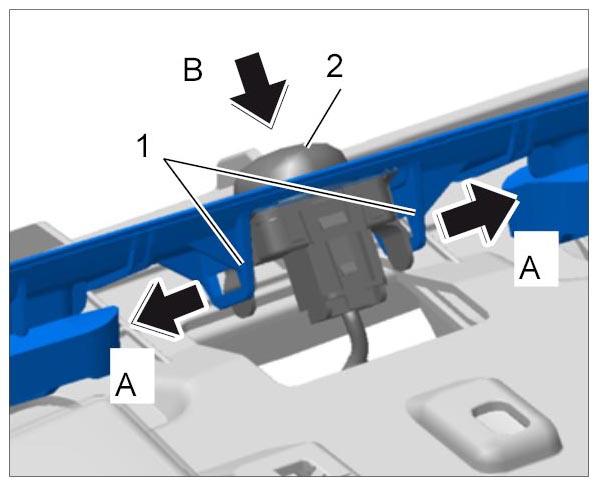

Press catches on defroster trim -1- apart -A- and press sun sensor -2- out -B- .

Fig 3: Removing Sun Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
