Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

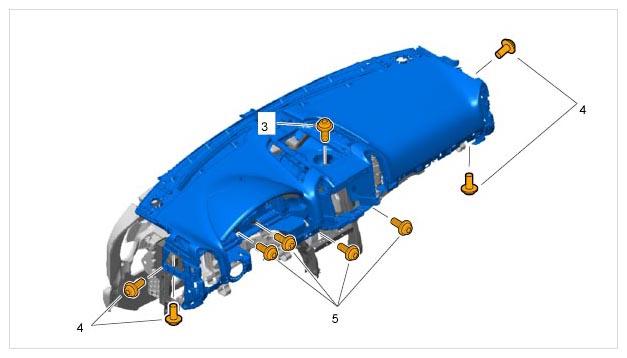

| Fastening screw at front of dashboard | Item 5 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw at side of dashboard | Item 4 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw at top of dashboard | Item 3 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw securing passenger's airbag unit to dashboard | -Item 2- | Tightening torque | 8 Nm (6 ftlb.) | ||
