Removing Dashboard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

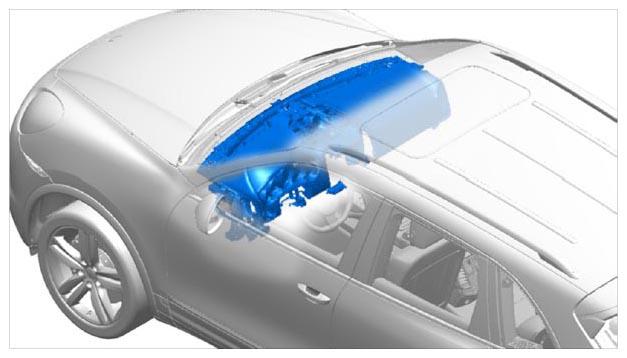

Fig 1: Identifying Dashboard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

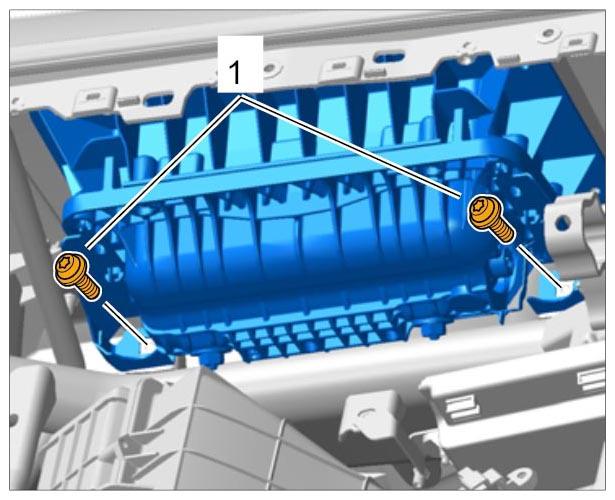

Loosen two fastening screws -1- on the passenger airbag unit from the mounting bracket.

Fig 2: Identifying Passenger Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

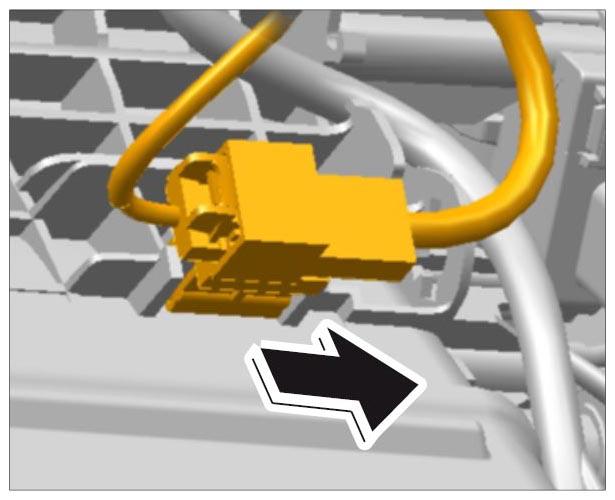

Release and unplug the two electric plug connections for the passenger airbag unit.

Fig 3: Unplugging Connectors On Passenger Airbag Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

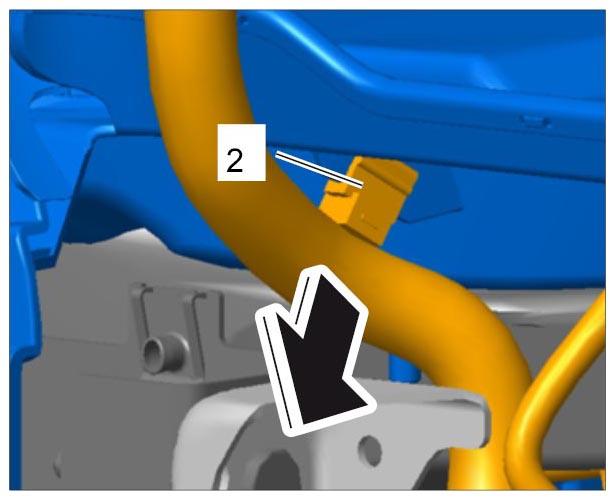

Unclip line bracket -2- from the dashboard at the left and right.

Fig 4: Unclipping Wiring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

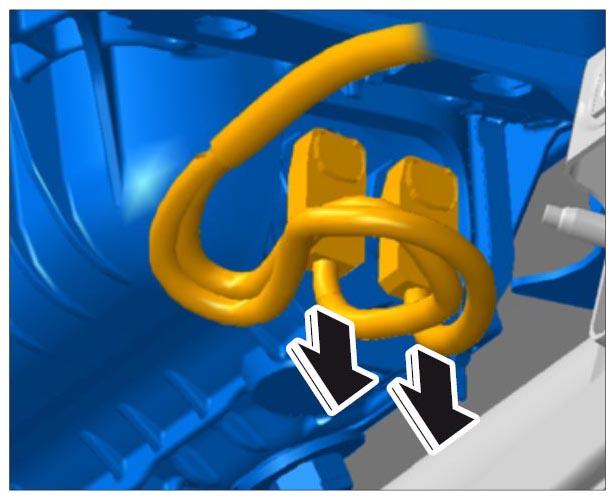

Unplug electric plug connections for the servo motors for the center air vents at the top.

Fig 5: Unplugging Connectors For Servo Motors For Air Vents
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

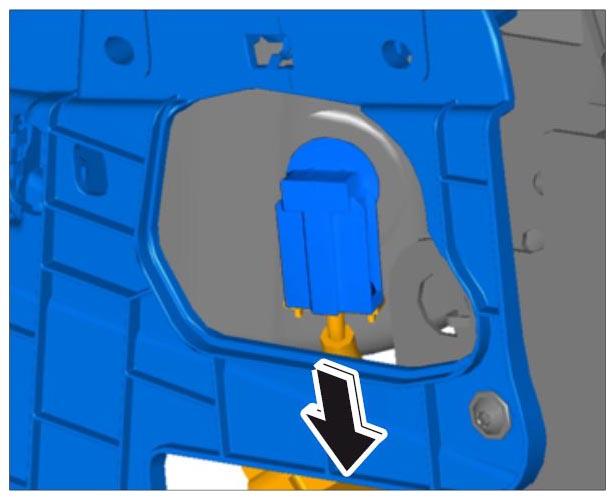

Unplug electric plug connection for the temperature sensor for the outer air vents at the left and right.

Fig 6: Disconnecting Connector For Temperature Sensor For Air Vents
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection for the ignition starter switch. → 280419 REMOVING AND INSTALLING IGNITION STARTER SWITCH
Remove dashboard.

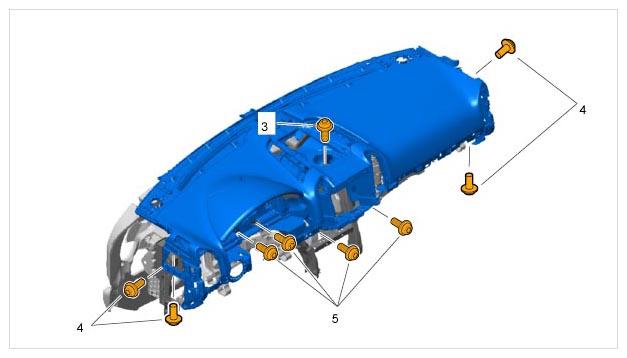

Fig 7: Identifying Dashboard Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Unscrew and remove fastening screw -3- from the top.
2. 7.2. Unscrew and remove fastening screws -4- at the sides of the dashboard.
3. 7.3. Unscrew and remove fastening screws -5- at the front of the dashboard.

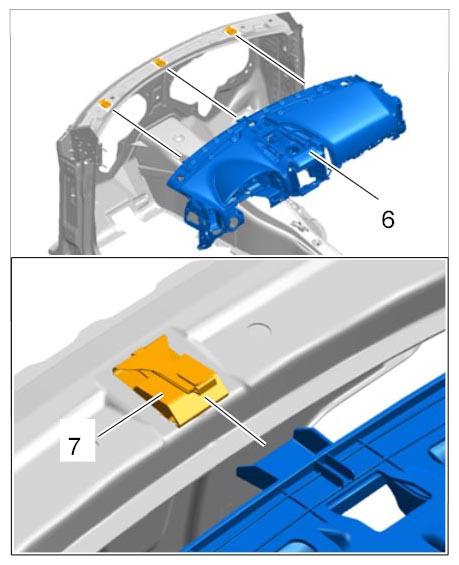

Pull the dashboard -6- inwards out of the three retaining clips -7- .

Fig 8: Identifying Dashboard And Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
