Removing Luggage Compartment Trim (Luggage Compartment Cover)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Remove center part of luggage compartment cover.
1. 1.1. Lift up center part of luggage compartment cover -1- (-A- ) and pull it to the rear -B- .

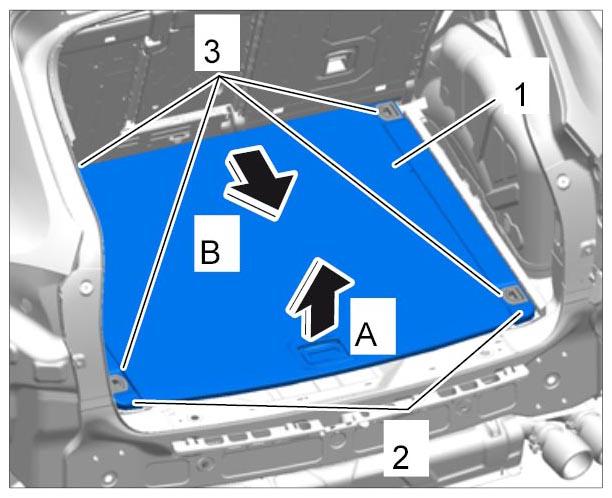

  Fig 1: Removing Luggage Compartment Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side parts of luggage compartment cover.
1. 2.1. At four lashing points -3- , fold up the tab -4- and unscrew fastening screws -5- .

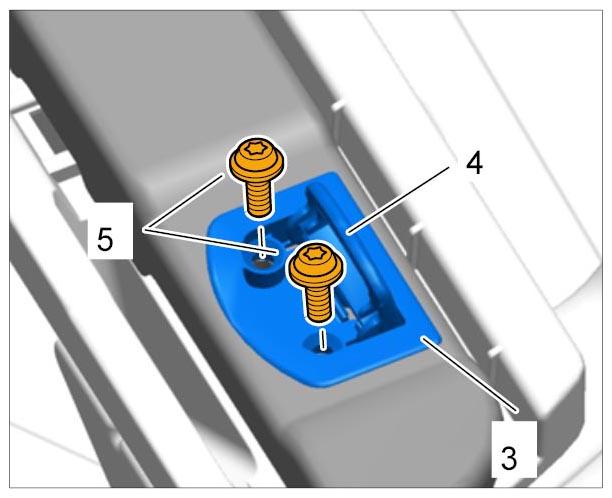

  Fig 2: Identifying Screws Of Lashing Points
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Slide side part of luggage compartment cover -2- forward -C- and remove it.

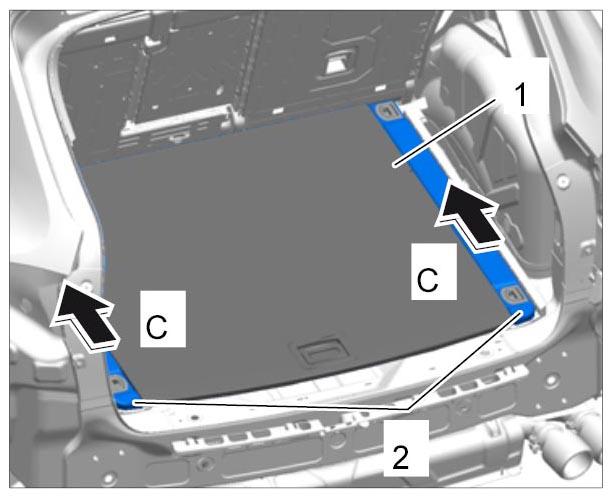

  Fig 3: Removing Side Part Of Luggage Compartment Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
