Removing Insulation For Front Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press fixing clips -2-  together -A-  and remove them -B-  .
  2. Remove insulation -1-  .

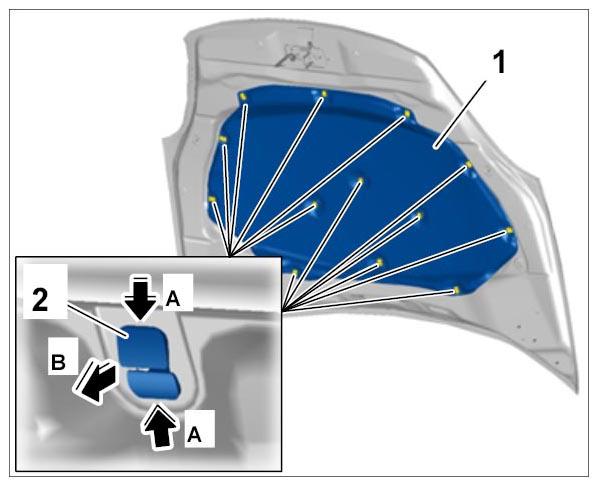

    Fig 1: Removing Insulation For Front Lid
    G09940630Courtesy of PORSCHE CARS NORTH AMERICA, INC.
