Removing Rear Luggage Compartment Side Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown for the front and rear .

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Unscrew the expansion rivets -1- .

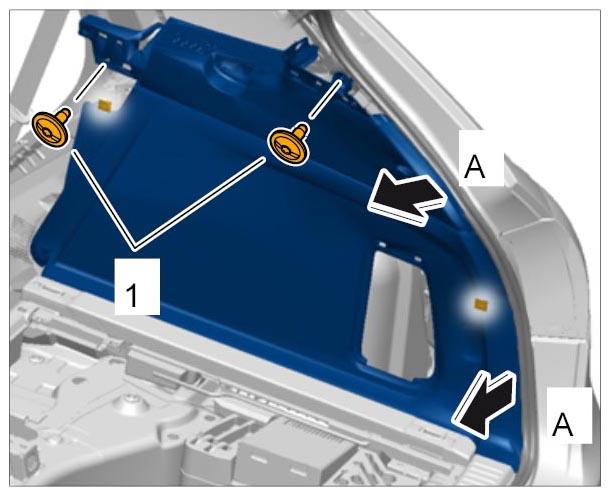

Fig 1: Removing Rear Luggage Compartment Side-Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach rear side trim panel in area -A- .
Release electrical plug connection for loudspeaker -a- and pull it off -B- .

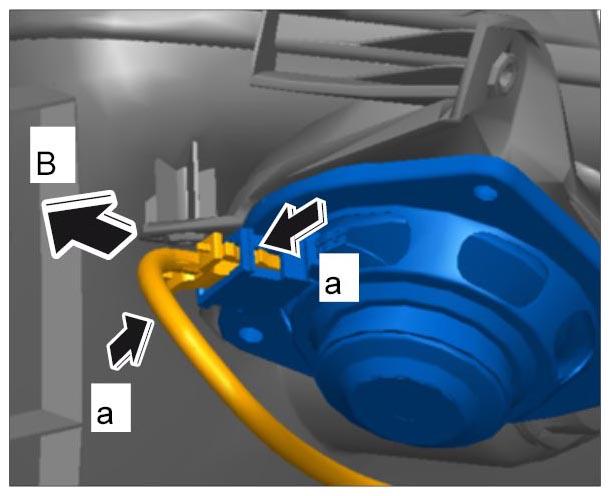

Fig 2: Disconnecting Loudspeaker Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On left side only: Disconnect electrical plug connection from socket. → 905819 REMOVING AND INSTALLING SOCKET
Unclip side trim panel at the marked areas -circles- .
