Replacing Trailer Hitch Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  from the trailer hitch control unit.

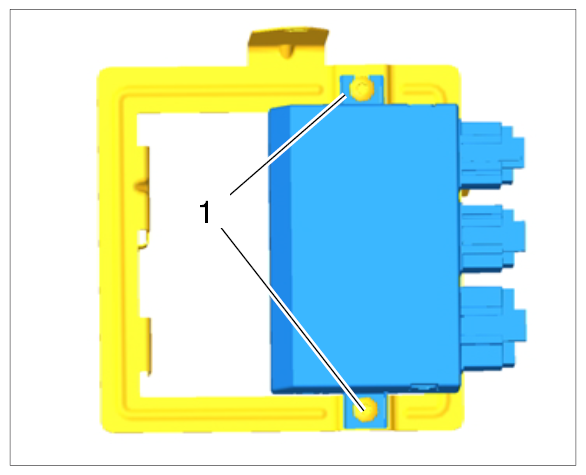

    Fig 1: Identifying Control Unit From Bracket
    G09940338Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove old trailer hitch control unit from the bracket.
  3. Position new trailer hitch control unit on the bracket.
  4. Tighten fastening screws -1-  on the trailer hitch control unit.
