Installing Trailer Hitch Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
Never touch the electric pins and plug contacts.

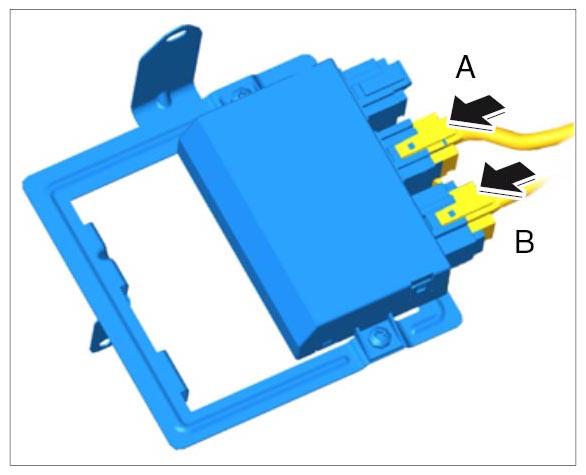

Plug in electric plug connection -arrow A- until it engages securely.

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection for trailer hitch power socket -arrow B- until it engages securely.

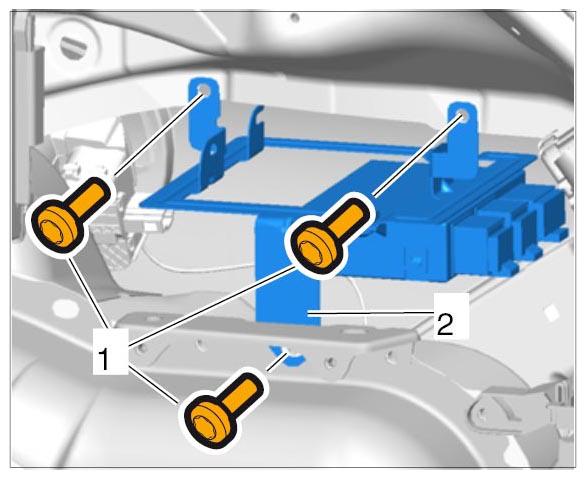

Position control unit with bracket -2- and tighten fastening screws -1- .

Fig 2: Installing Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
