Removing Rearview Mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

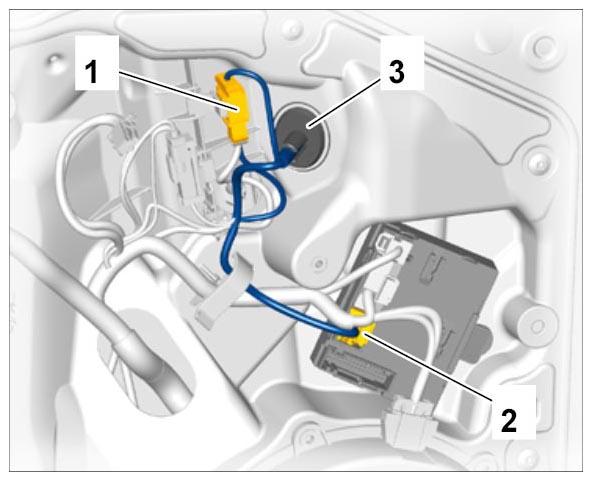

Release and disconnect electric plug connections -1, 2- .
Expose wire harness and guide the rubber sleeve -3- out of the door sub-frame.

Fig 1: Identifying Plug Connection For Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

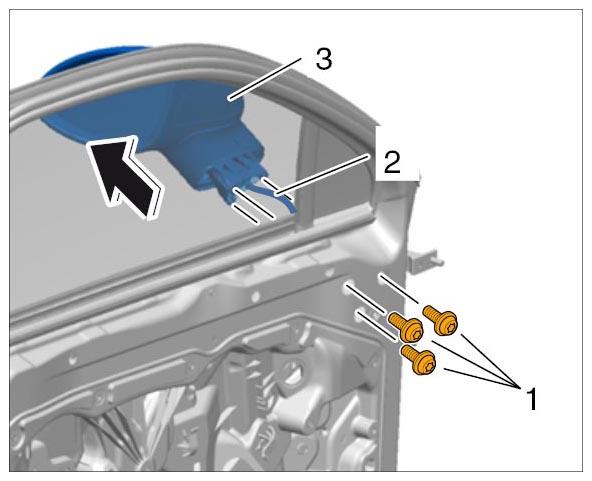

Pull off covers over fastening holes.
Unscrew fastening screws -1- .

Fig 2: Removing Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

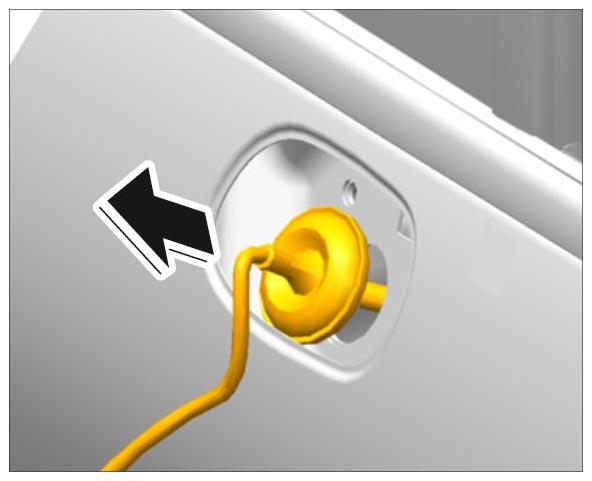

Guide rubber sleeve out of the door -arrow- .

Fig 3: Pulling Out Rubber Sleeve Of Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear-view mirror -3- and wire harness -2- from the door.
