Removing Mirror Glass

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

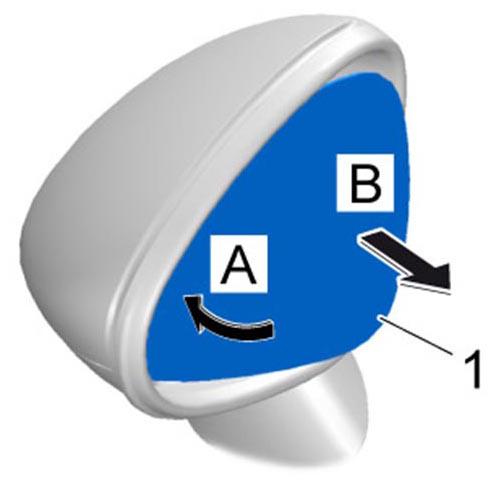

Press the outside of the mirror glass inwards -A- and carefully pull it out on the inside -B- .

Fig 1: Removing Mirror Glass
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

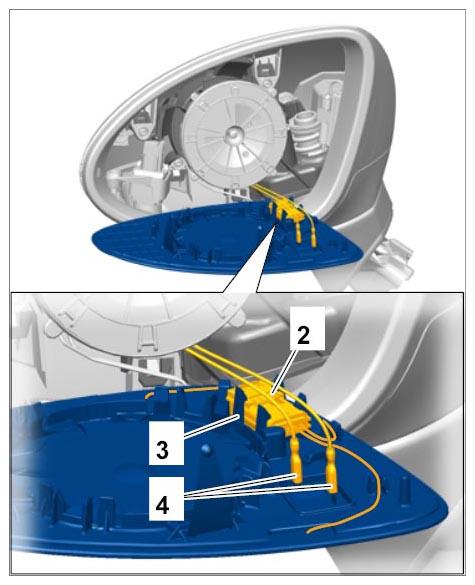

Unclip electric plug connection -2- from the bracket -3- .
Release and disconnect electric plug connection -2- .
Disconnect electric plug connections -4- from the mirror glass.

Fig 2: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
