Removing Trim Frame For Side Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

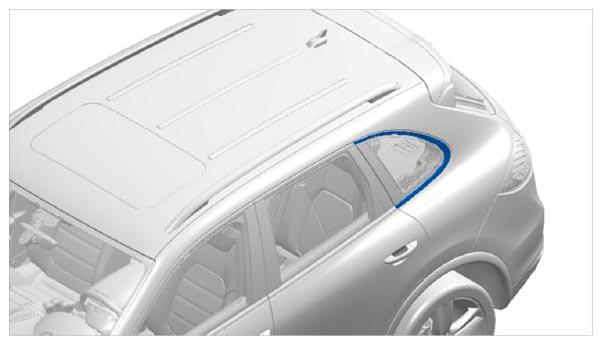

Fig 1: Identifying Trim Frame For Side Window Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully unclip clips -2- on the trim frame -1- using a plastic wedge.

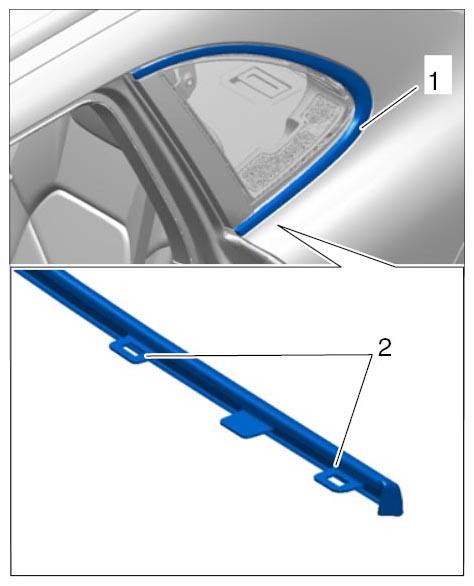

Fig 2: Removing Trim Frame For Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
