Installing Trim Frame For Side Window
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Check that all fixing clips are positioned fully and correctly.
Check that the fixing clips are not bent or broken.
Replace damaged or missing clips with new ones.

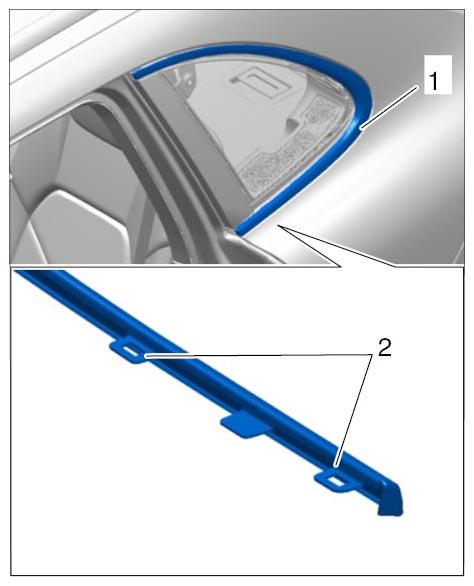

- Clip in clips -2-
for the trim frame -1-
into the side window.
- 1.1. Check that the trim frame is seated correctly.
