Replacing Rear Logo

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Heat the rear lid.
    1. 1.1. Heat the rear lid close to the logo -1-  using the hot-air blower v.a.g 1416 -2-  .

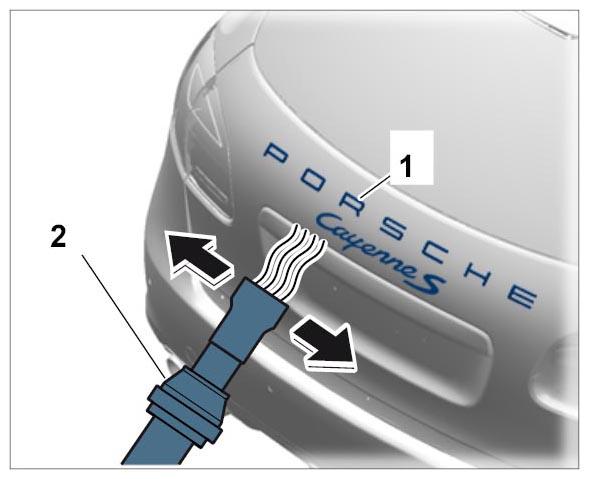

      Fig 1: Heating Rear Lid
      G09940255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove logo.
    1. 2.1. Insert a plastic spatula -2-  under the logo -1-  and prise off the logo -2-  .

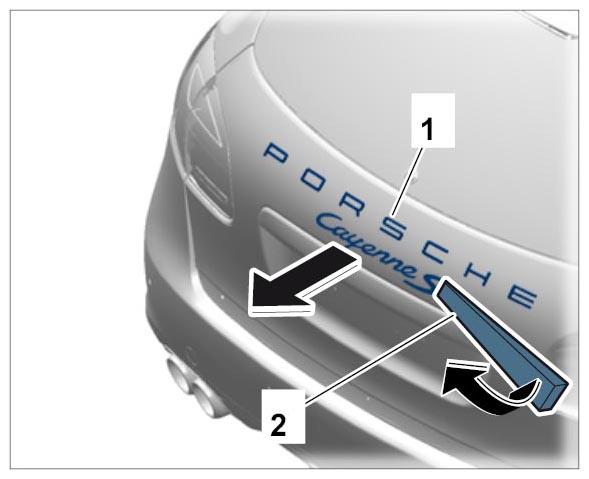

      Fig 2: Removing Logo
      G09940256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clean the rear lid.
    1. 3.1. Loosen adhesive residue on the rear lid using silicone remover and remove it.
