Installing Rear Logo Without Model Designation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Carefully clean any dirt, grease, wax and other impurities off the installation area of the body using isopropanol.
Always use a clean cloth.
The room and object temperature must be at least → Nominal value: +15°C .
Humidity should be → Nominal value: 50 %+/-10 % .
Do not touch the bonding surface again after removing the protective paper.
Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
The parts must have been bonded for at least → Nominal value: 72 h before washing the vehicle in a car wash.

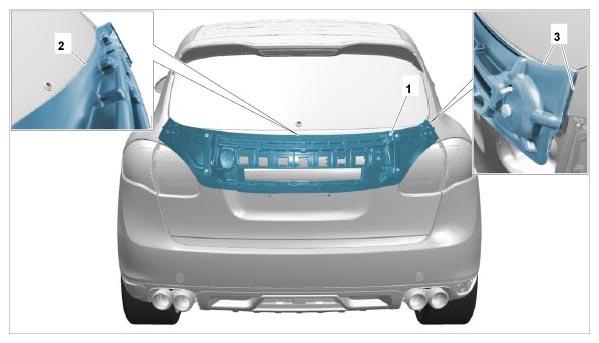

Logo template - E2 9864 -1- must be positioned on the vehicle.
1. 1.1. Position the edges -2, 3- of the logo template -1- flush with the rear lid.
2. 1.2. Press logo template -1- firmly onto the rear lid.

  Fig 1: Positioning Logo Template
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

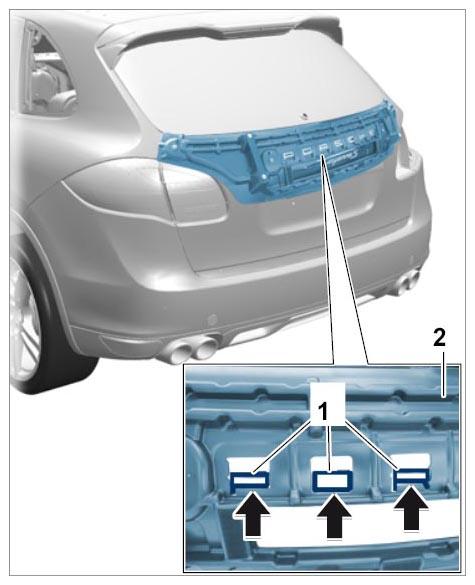

Remove protective paper from the logo -1- .
Align the logo -1- at the lower edge -arrow- in the logo template -2- and press it on firmly.

Fig 2: Aligning Logo At Lower Edge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove logo template from the vehicle.
