Installing Rear Logo With Model Designation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

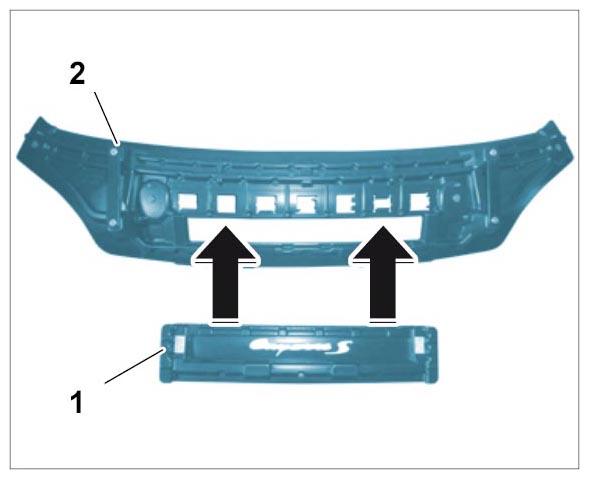

Insert the correct interchangeable insert -1- into logo template - E2 9864 -2- .
The following interchangeable inserts can be selected: Interchangeable insert - E2 9864/1 , Interchangeable insert - E2 S 9864/2 , Interchangeable insert - E2turbo 9864/3 , Interchangeable insert - E2turbo S 9864/4 , Interchangeable insert - E2 S hybrid 9864/5 , Interchangeable insert - E2 GTS 9864/6

Fig 1: Preparing Logo Template
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

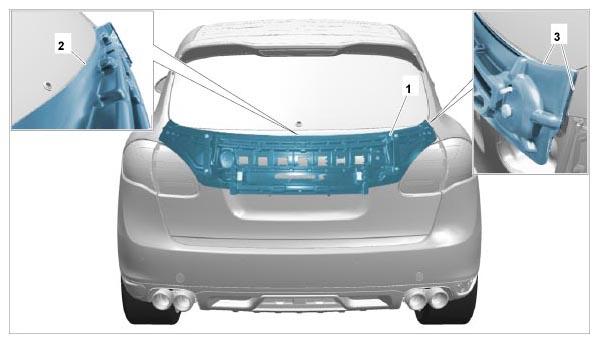

Position the logo template -1- on the vehicle.
1. 2.1. Position the edges -2, 3- of the logo template -1- flush with the rear lid.
2. 2.2. Press logo template -1- firmly onto the rear lid.

  Fig 2: Positioning Logo Template
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

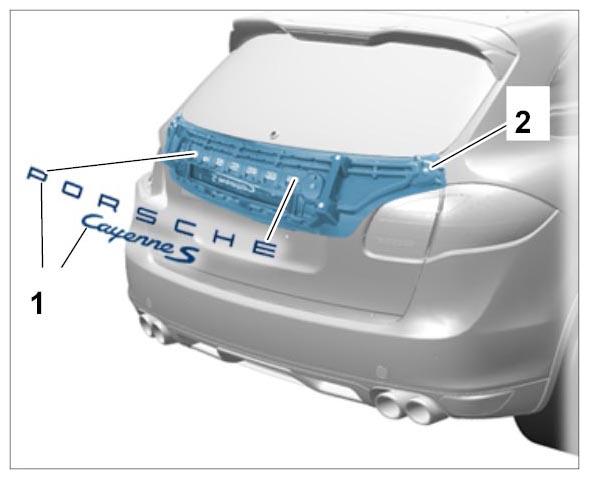

Remove protective paper from the logo -1- .
Align the logo -1- using the logo template -2- and press it on firmly.

Fig 3: Aligning Logo
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
