Removing Trim Panel For Rear Lid (Handle Strip)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen fastening nuts for handle strip -1-  .

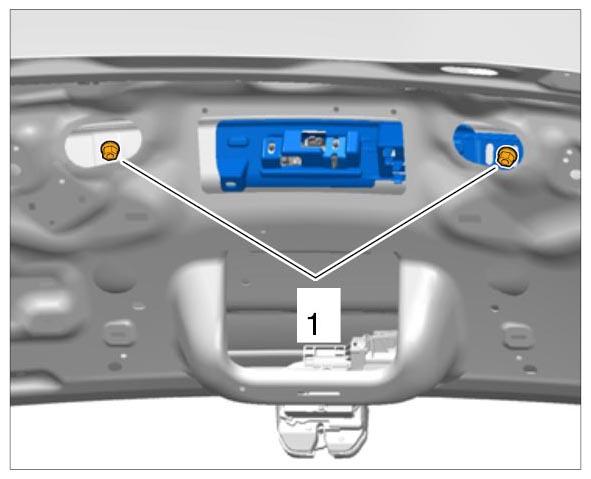

    Fig 1: Identifying Fastening Nuts For Handle Strip
    G09940245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen bonding on handle strip by pressing with the socket wrench -arrow  against the fastening nuts.

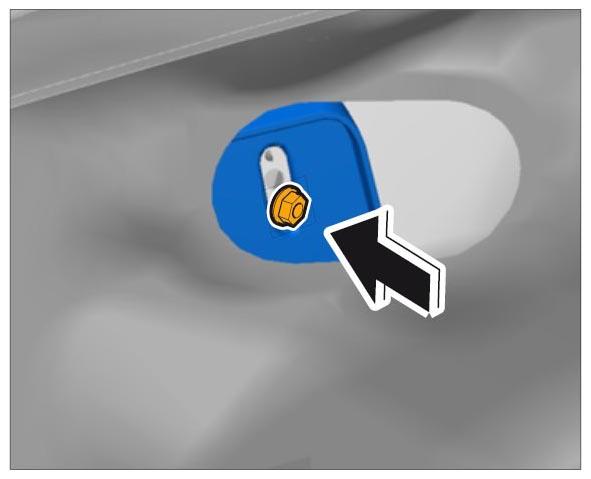

    Fig 2: Detaching Handle Strip
    G09940246Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Screw off fastening nuts for handle strip.
  4. Carefully remove the handle strip from the rear lid.
