Replacing Rear Lid Molding

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove molding for rear lid.
1. 1.1. Heat molding using hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119 .
2. 1.2. Carefully detach molding -1- using a plastic wedge -2- and remove it from the rear lid -3- .

  Fig 1: Removing Molding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear lid molding.
1. 2.1. Clean bonding surface with isopropanol.
2. 2.2. Pull protective film off the bonding area on the molding.
3. 2.3. Position the molding -1- using centering pins -2- and press it on the lid -3- .

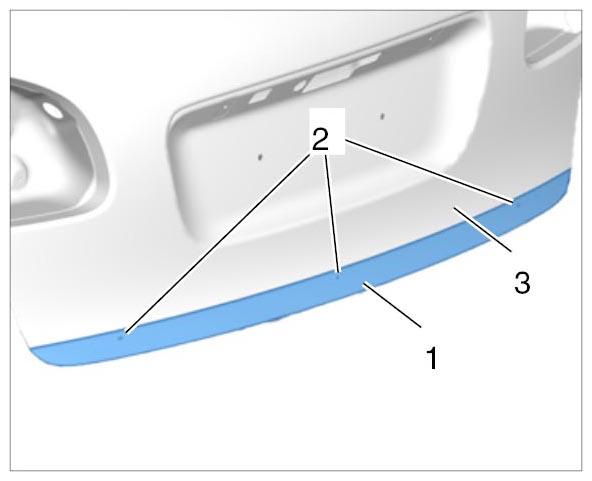

  Fig 2: Installing Molding For Rear Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Press the molding firmly onto the rear lid, starting from the middle and moving outwards.
