Removing Rear Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew bottom fastening screw -1-  .

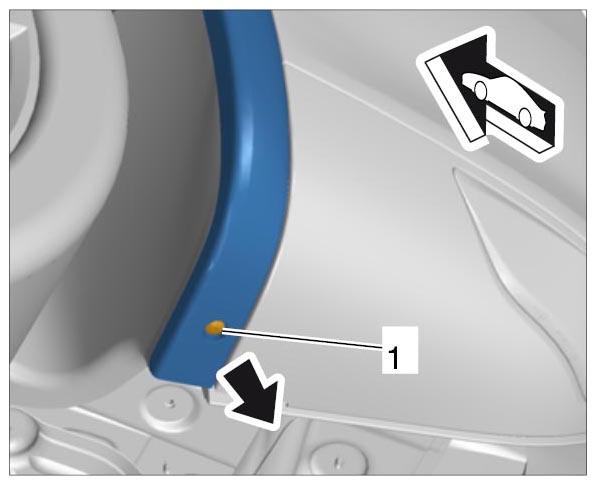

    Fig 1: Removing Rear Wheel Cover
    G09940224Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  on the wheel housing liner -2-  .

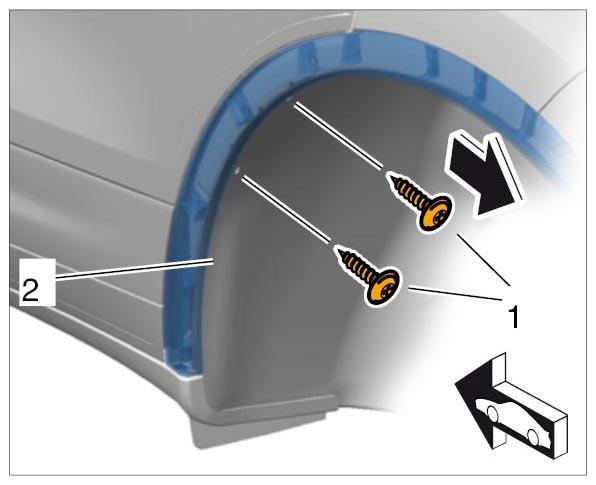

    Fig 2: Releasing Wheel Housing Liner
    G09940225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press the wheel housing liner -2-  aside -A-  and unscrew the fastening screw -3-  and fastening nut -4-  from the inside.

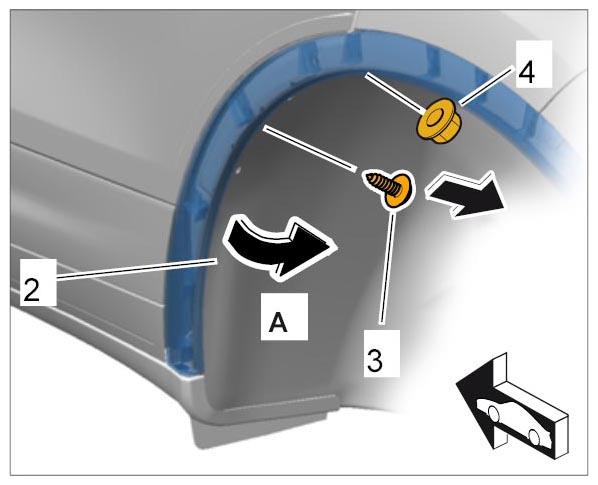

    Fig 3: Removing Front Wheel Cover
    G09940226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull off safety clip -5-  .

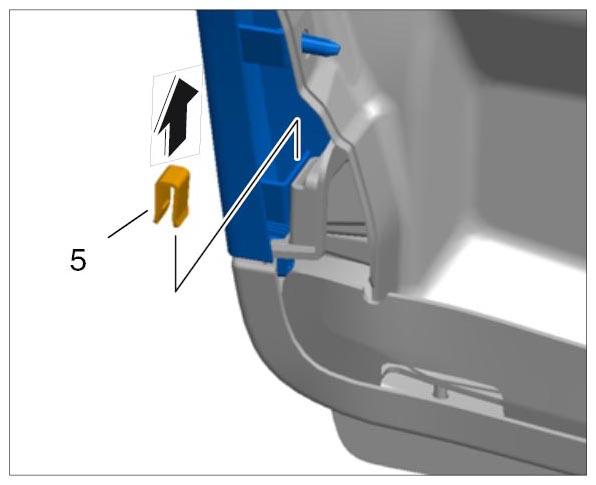

    Fig 4: Pulling Off Safety Clip
    G09940227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove wheel cover at the door.
    1. 5.1. Heat up wheel cover -8-  at the door -9-  using a hot-air blower.
    2. 5.2. Prise wheel cover -8-  off evenly all the way around at the door -9-  using an assembly wedge.

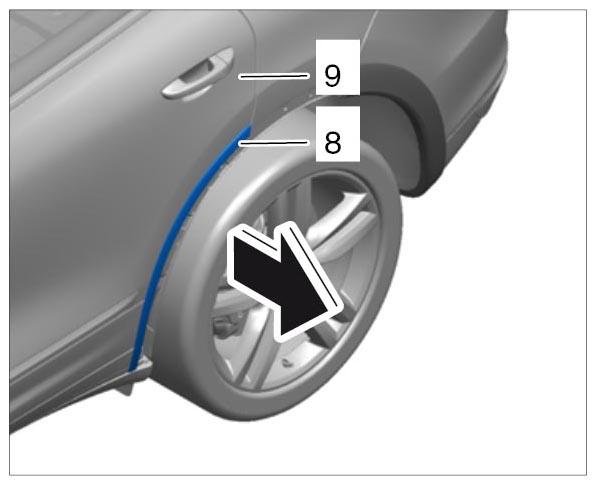

    Fig 5: Removing Wheel Cover At Door
    G09940228Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove wheel cover on rear apron.
    1. 6.1. Heat up wheel cover -10-  on the rear apron -11-  using a hot-air blower.
    2. 6.2. Prise wheel cover -10-  off the rear apron -11-  evenly all the way around using an assembly wedge -arrow-  .

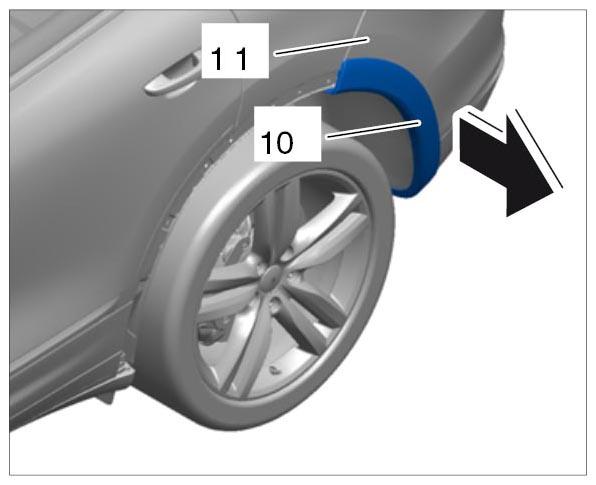

      3. Fig 6: Removing Wheel Cover On Rear Apron
      G09940229Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Remove wheel cover on the side panel.
    1. 7.1. Heat up wheel cover -6-  on the side panel -7-  using a hot-air blower (hot-air blower WE Leister-Electron  ).
    2. 7.2. Prise wheel cover -6-  off the side panel -7-  evenly all the way around, starting from the rear, using an assembly wedge -arrow-  .

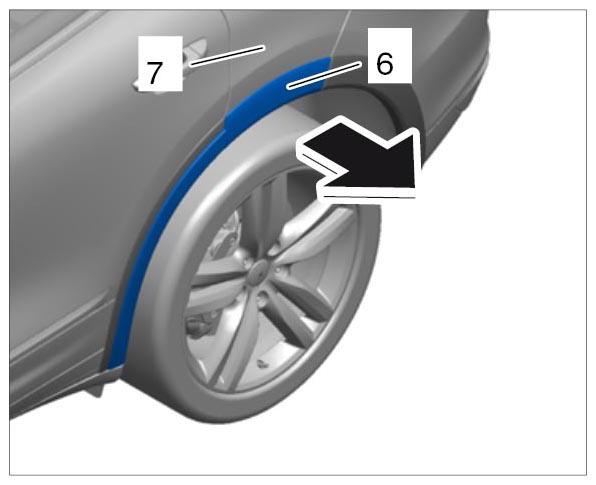

      3. Fig 7: Removing Wheel Cover On Side Panel
      G09940230Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Clean bonding areas.
    1. 8.1. Remove adhesive residue in the assembly area -A-  with an erasing disc (erasing disc Nr.174 Pos.1  ).
    2. 8.2. Wipe off fitting area -A-  with a cloth soaked in isopropanol.

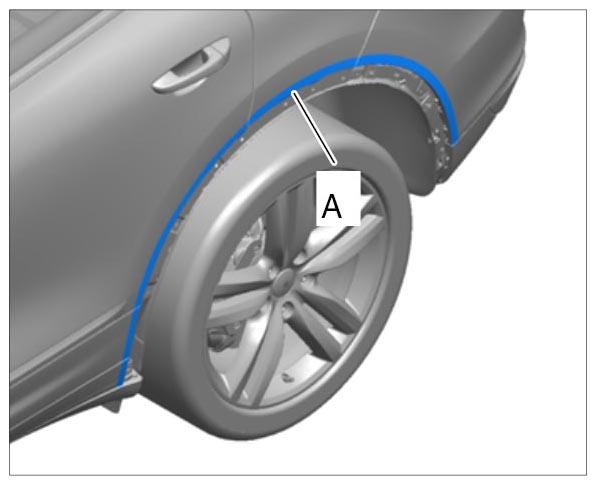

    Fig 8: Cleaning Bonding Area
    G09940231Courtesy of PORSCHE CARS NORTH AMERICA, INC.
