Installing Rear Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Fit the wheel cover to the side panel.
    1. 1.1. Position wheel cover -6-  on the side panel -7-  and clip it in.

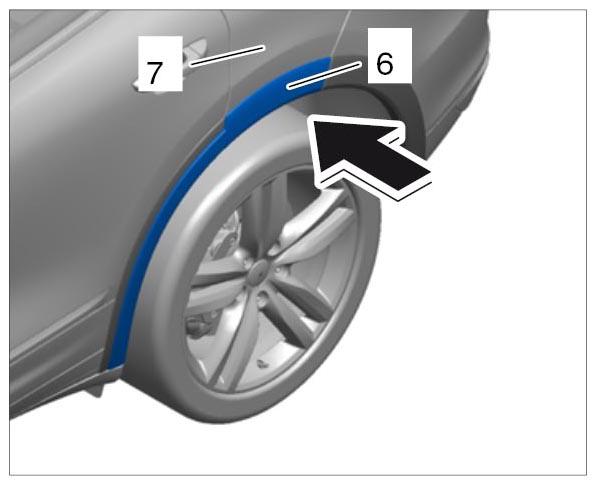

      2. Fig 1: Fitting Wheel Cover To Side Panel
      G09940232Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Pull protective paper -13-  off the adhesive tape.

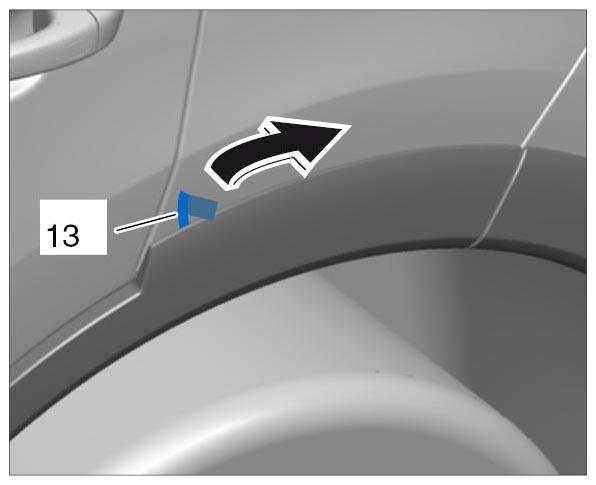

      Fig 2: Pulling Off Protective Paper
      G09940233Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 1.3. Press evenly and firmly on wheel cover in area of adhesive -6-  with the ball of your hand.
  2. Fit wheel cover at the door.
    1. 2.1. Pull protective paper -14-  off the adhesive tape.

      Information

      • Start positioning the wheel cover at the top.
      • Align the cover flush with the edge of the door.

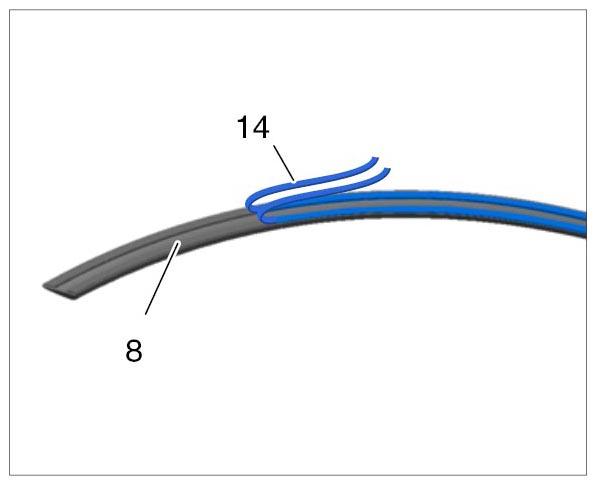

        • Fig 3: Identifying Protective Paper And Wheel Cover
        G09940234Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Position wheel cover -8-  at the door -9-  .
    3. 2.3. Press evenly and firmly on wheel cover in area of adhesive -8-  with the ball of your hand.

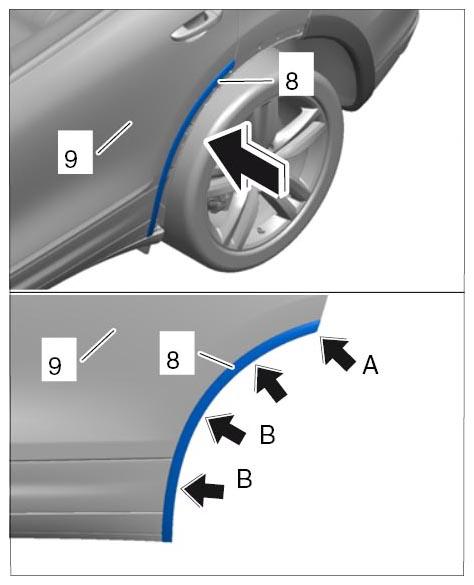

      4. Fig 4: Fitting Wheel Cover At Door
      G09940235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit wheel cover on rear apron.
    1. 3.1. Position wheel cover -10-  on the rear apron -11-  and clip it in.

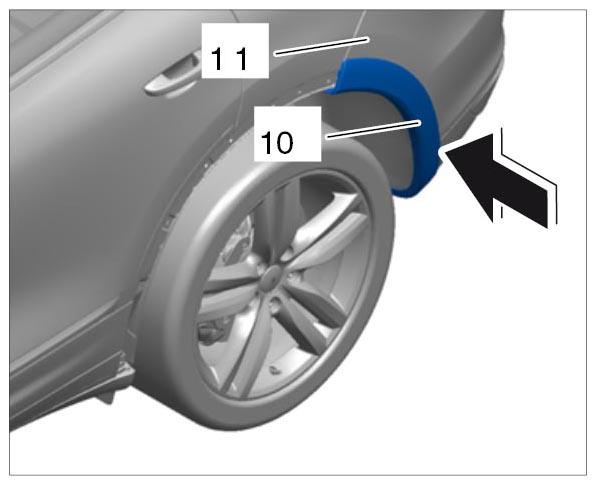

      2. Fig 5: Fitting Wheel Cover On Rear Apron
      G09940236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Pull protective paper -12-  off the adhesive tape.

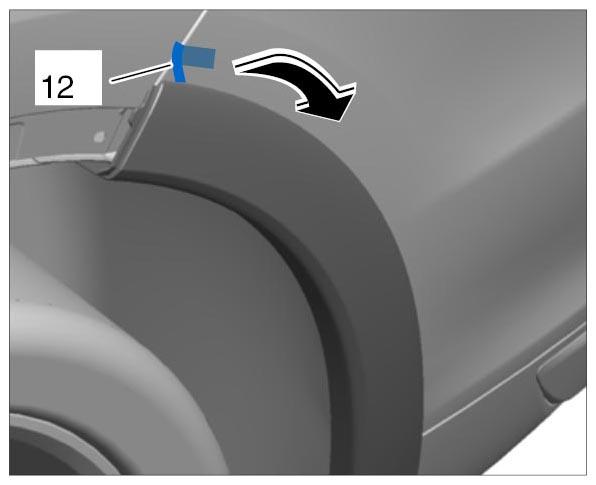

      Fig 6: Pulling Off Protective Paper
      G09940237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Press evenly and firmly on wheel cover in area of adhesive -10-  with the ball of your hand.
  4. Screw in bottom fastening screw -1-  .

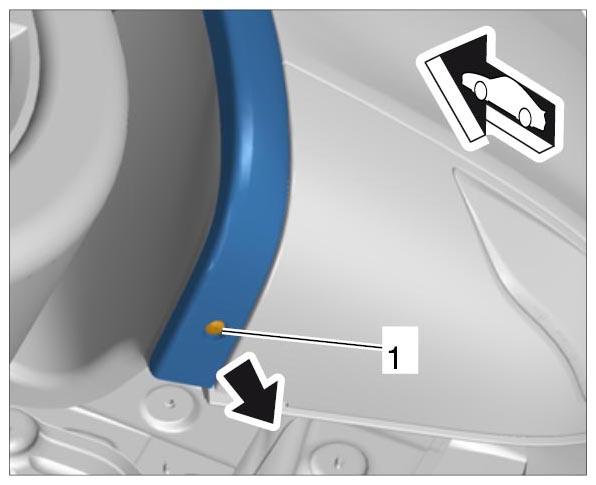

    Fig 7: Securing Rear Wheel Cover
    G09940238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Fit safety clip -5-  .

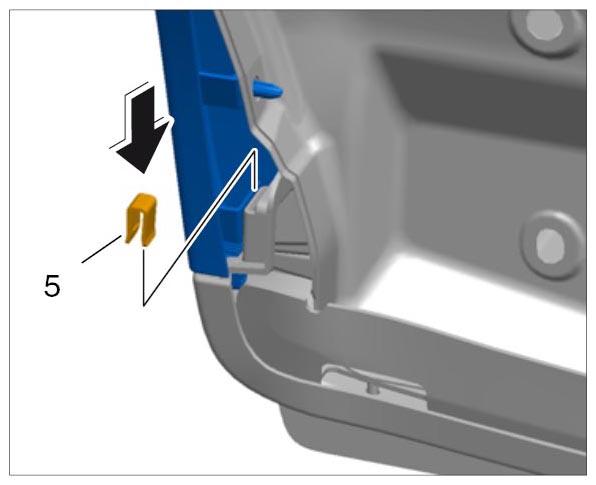

    Fig 8: Fitting Safety Clip
    G09940239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Press the wheel housing liner -2-  aside -A-  and screw in the fastening screw -3-  and fastening nut -4-  from the inside.

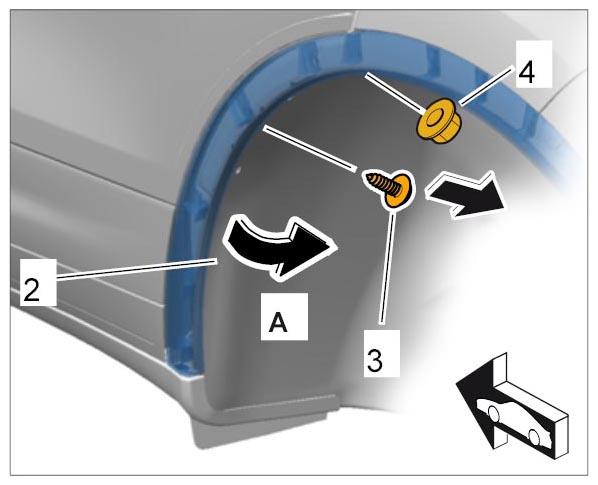

    Fig 9: Securing Front Wheel Cover
    G09940240Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Screw in fastening screws -1-  for the wheel housing liner -2-  .

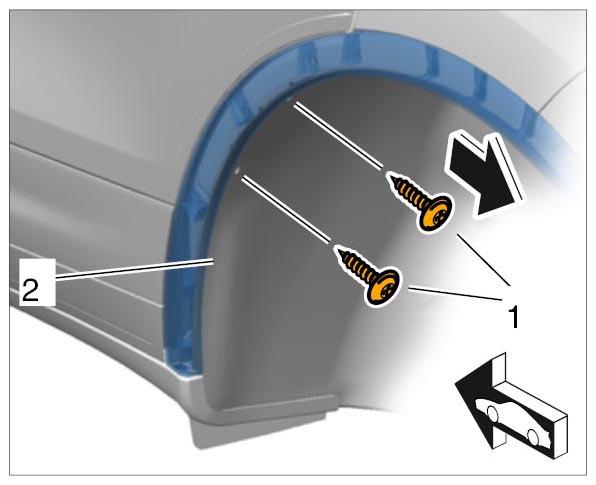

    Fig 10: Securing Wheel Housing Liner
    G09940241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
