Removing Door Entry Guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Remove cover strip for door entry guard at the front -1- .
1. 1.1. Unclip cover strip for door entry guard at the front -1- using an assembly wedge -B- .
2. 1.2. Guide cover strip for door entry guard at the front -1- to the rear -A- and remove it.

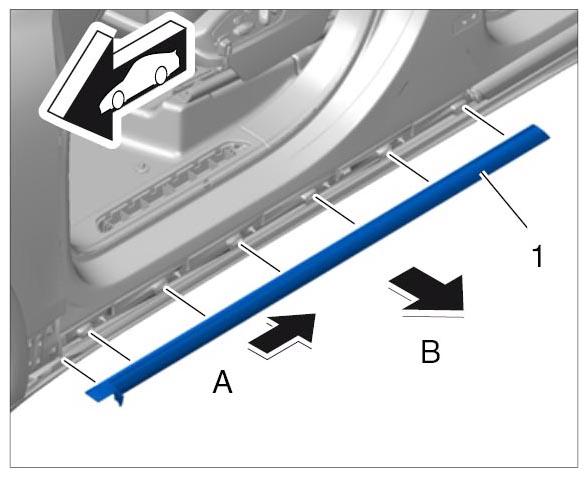

  Fig 1: Unclipping Cover Strip For Door Entry Guard At Front
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover strip for door entry guard at the rear -2- .
1. 2.1. Unclip cover strip for door entry guard at the rear -2- using an assembly wedge.
2. 2.2. Remove cover strip for door entry guard at the rear -2- (-C- ).

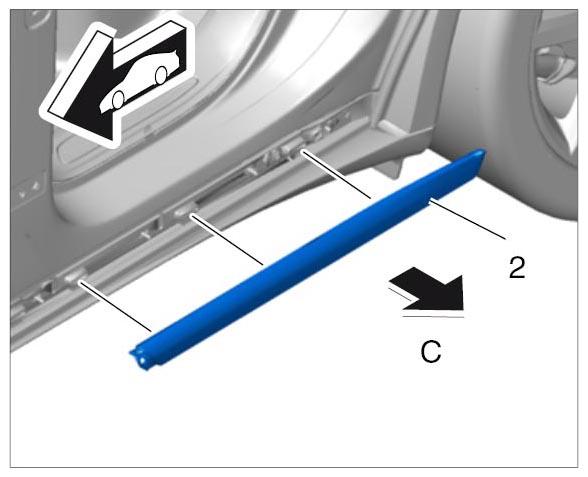

  Fig 2: Unclipping Cover Strip For Door Entry Guard At Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door entry guard.
1. 3.1. Unscrew and remove fastening nuts -3- for the door entry guard -4- .
2. 3.2. Remove door entry guard -4- .

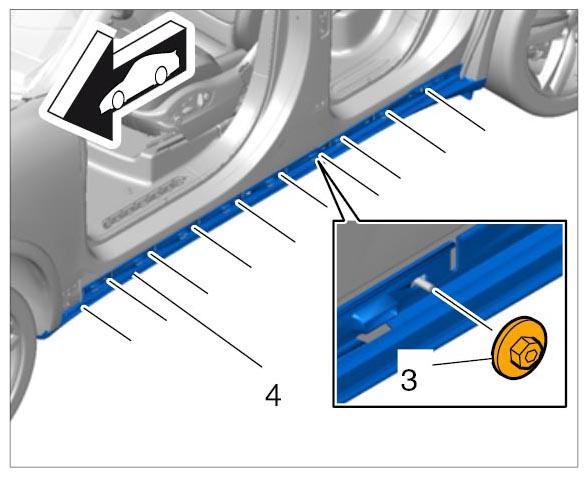

Fig 3: Removing Door Entry Guard

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
