Installing Door Entry Guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is performed in reverse order to removal.
  2. Tighten fastening nuts securing door entry guard to body.
    1. 2.1. Tightening a fastening nut in the area of the front wing strut with Tightening torque 4 Nm
    2. 2.2. Tighten nine fastening nuts, front, middle and rear with Tightening torque 6 Nm

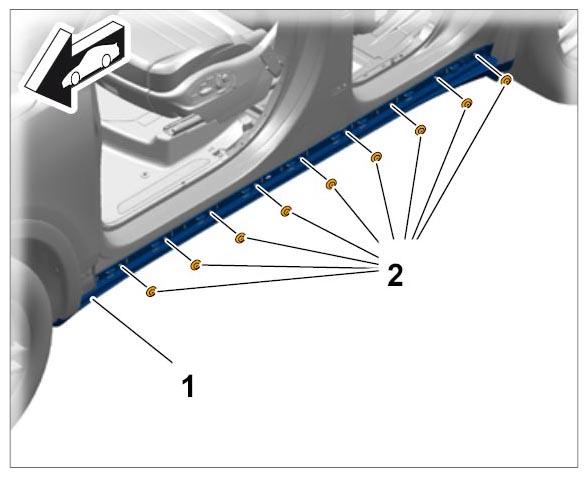

      Fig 1: Removing Nuts For Sill Cover
      G09940203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
