Removing Step

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover strip on front step -1-  .
    1. 1.1. Unclip cover strip on front step -1-  using an assembly wedge.↓
    2. 1.2. First guide cover strip on front step -1-  out to the rear -A-  and then remove it by pulling it outwards -B-  .

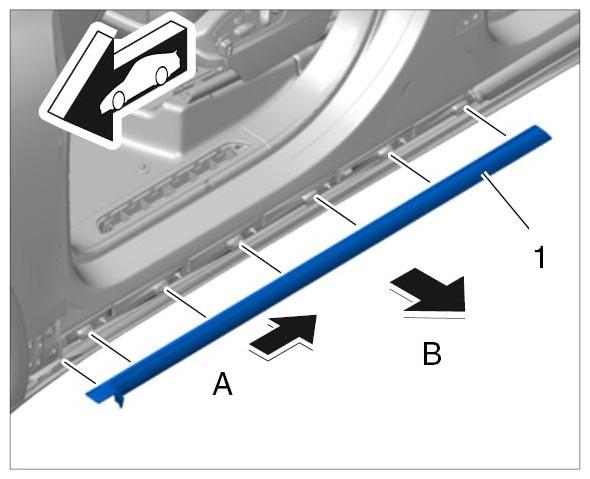

      3. Fig 1: Unclipping Front Cover Strip
      G09940196Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove cover strip on rear step.
    1. 2.1. Unclip cover strip on rear step -2-  using an assembly wedge.
    2. 2.2. Take off cover strip on rear step -2-  , -C-

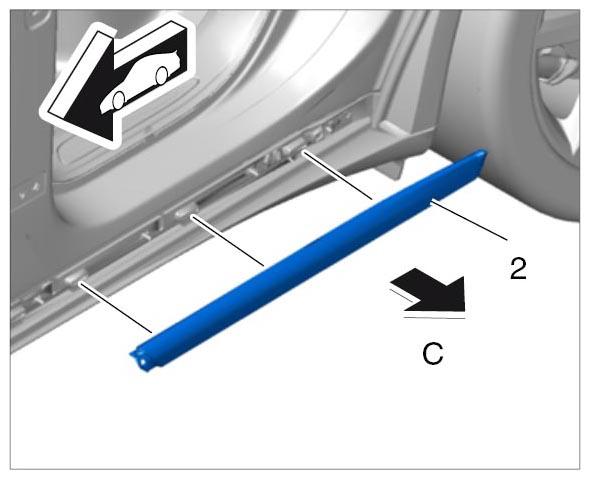

      3. Fig 2: Unclipping Rear Cover Strip
      G09940197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove the step.
    1. 3.1. Unscrew fastening nuts -3-  on the step -4-  .
    2. 3.2. Remove the step -4-  .

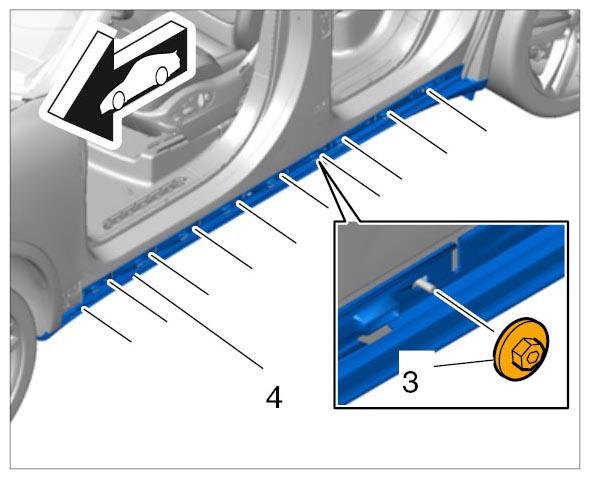

    Fig 3: Removing Step
    G09940198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
