Removing Front Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach front wheel housing liner at the wheel arch.
    1. 1.1. Unscrew fastening screws on the wheel arch -1-  .

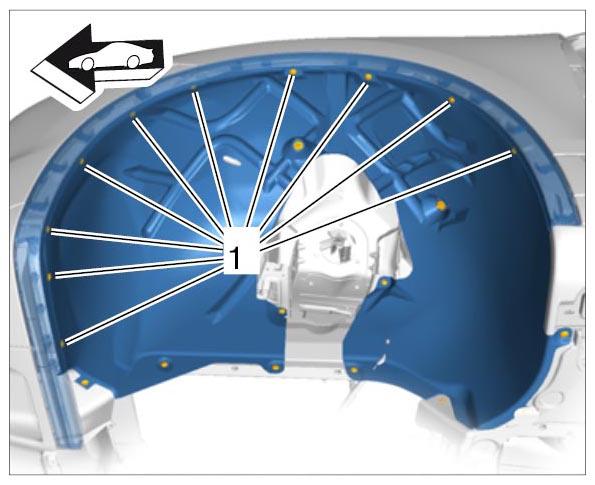

      Fig 1: Detaching Wheel Housing Liner
      G09940170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the wheel housing liner aside.
  3. Unscrew front fastening screws -1-  on the front apron -2-  .

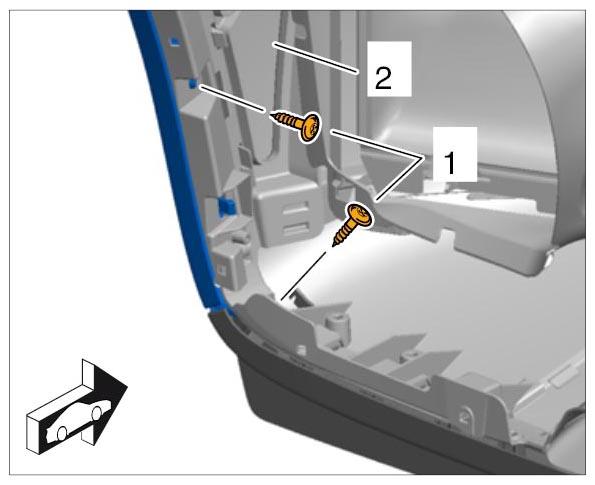

    Fig 2: Securing Screws Of Wheel Cover To Front Apron
    G09940171Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull off safety clip -3-  .

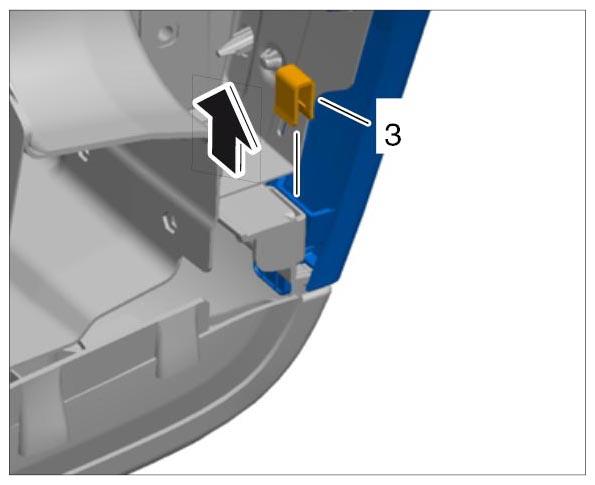

    Fig 3: Pulling Off Safety Clip
    G09940172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew fastening screws -4-  on the wing -5-  .

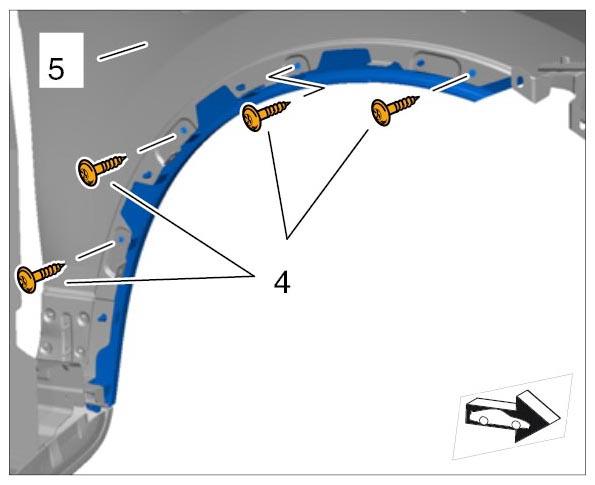

    Fig 4: Removing Screws Of Wheel Cover To Wing
    G09940173Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove wheel cover on wing.
    1. 6.1. Heat up wheel cover -6-  on the wing -5-  using a hot-air blower (hot-air blower WE Leister-Electron  ).
    2. 6.2. Prise wheel cover -6-  off the wing -5-  evenly all the way around using an assembly wedge -arrow-  .

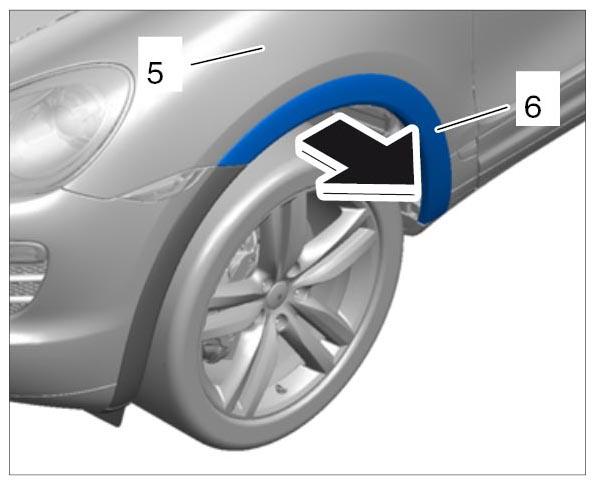

      3. Fig 5: Removing Wheel Cover On Wing
      G09940174Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Remove wheel cover on front apron.
    1. 7.1. Heat up wheel cover -7-  on the front apron -2-  with a hot-air blower.
    2. 7.2. Prise wheel cover -7-  off the front apron -2-  evenly all the way around using an assembly wedge -arrow-  .

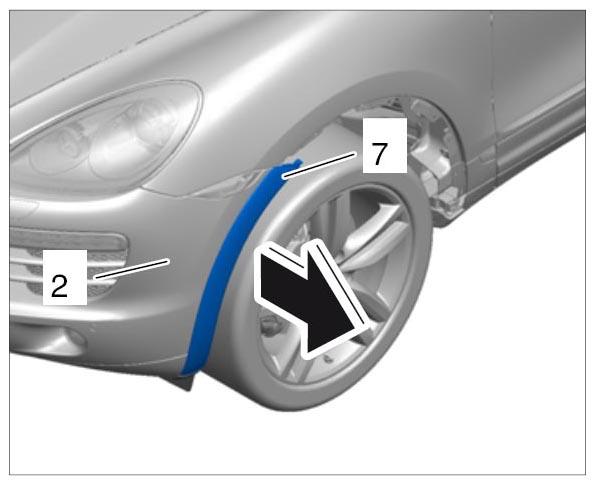

      3. Fig 6: Removing Wheel Cover On Front Apron
      G09940175Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Clean bonding areas.
    1. 8.1. Remove adhesive residue in the assembly area -A-  with an erasing disc (erasing disc Nr.174 Pos.1  ).
    2. 8.2. Wipe off fitting area -A-  with a cloth soaked in isopropanol.

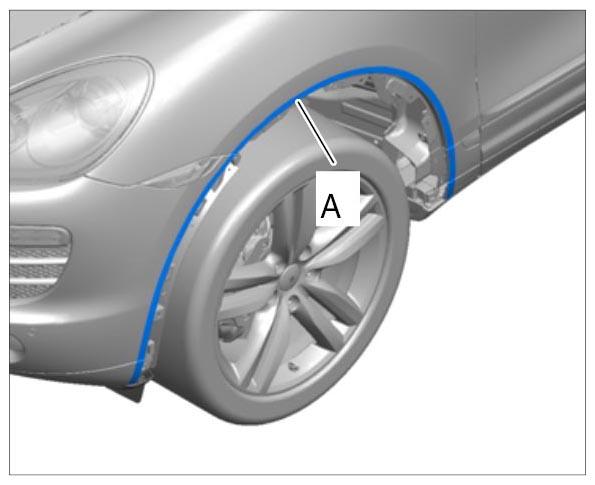

      3. Fig 7: Cleaning Bonding Areas
      G09940176Courtesy of PORSCHE CARS NORTH AMERICA, INC.
