Installing Front Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The object and room temperature must be at least 18° C for bonding the components.
The components must be bonded for at least 24 hours before washing the vehicle.

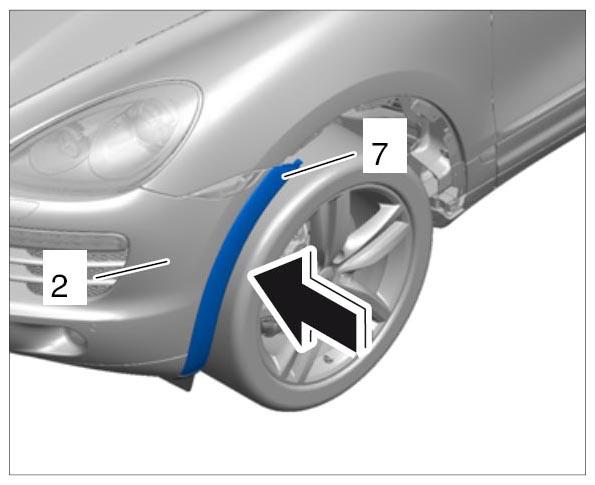

Fit wheel cover on front apron.
1. 1.1. Position wheel cover -7- on the front apron -2- and clip it in.

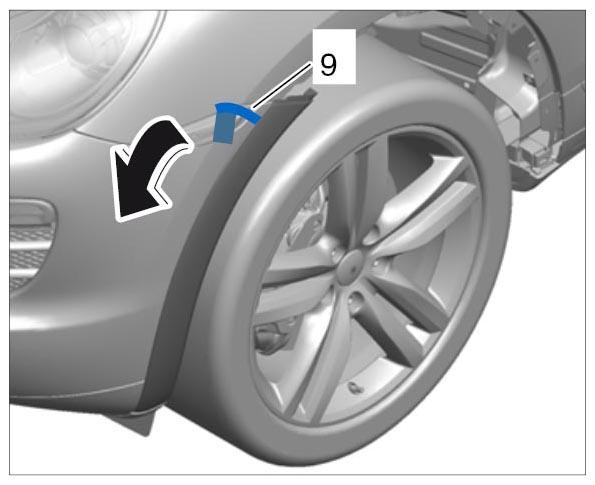

2. 1.2. Pull protective paper -9- off the adhesive tape.
3. 1.3. Press evenly and firmly on wheel cover in area of adhesive -7- with the ball of your hand.
Fig 2: Pulling Off Protective Paper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

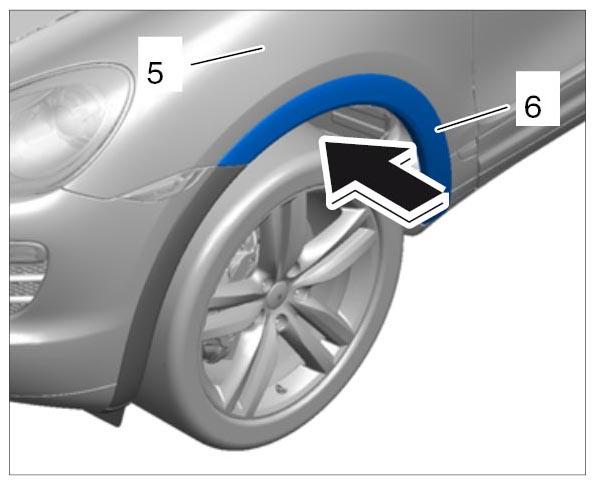

Fit wheel cover on wing.
1. 2.1. Position wheel cover -6- on the wing -5- and clip it in.

  Fig 3: Fitting Wheel Cover On Wing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

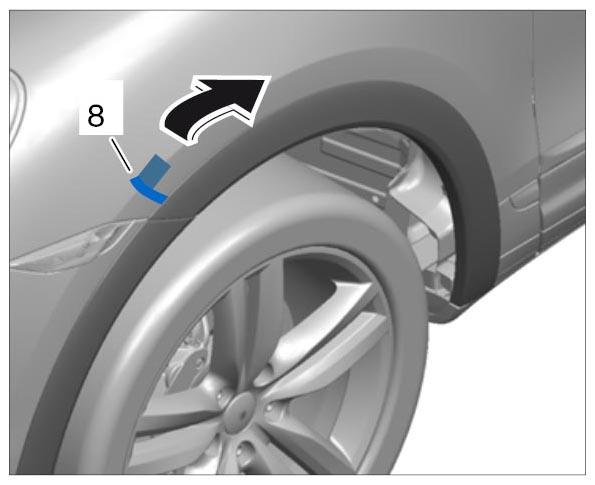

2. 2.2. Pull protective paper -8- off the adhesive tape.

  Fig 4: Pulling Off Protective Paper
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Press evenly and firmly on wheel cover in area of adhesive -6- with the ball of your hand.

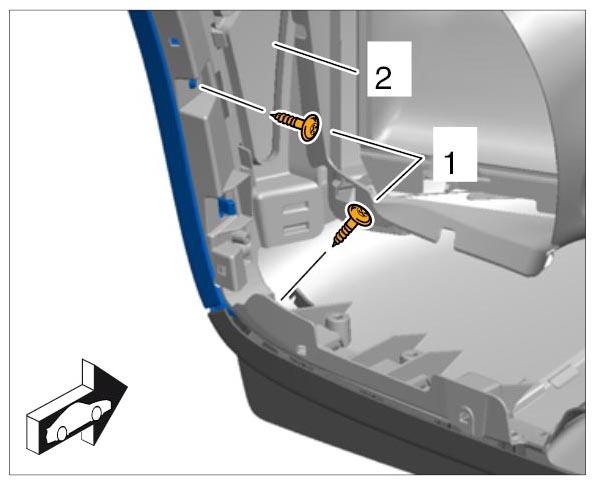

Screw in fastening screws -1- at the front of the front apron -2- .

Fig 5: Securing Screws Of Wheel Cover To Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

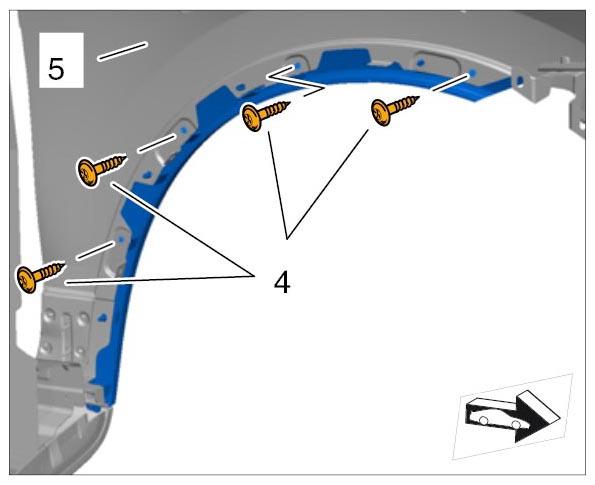

Screw in fastening screws -4- on the wing -5- .

Fig 6: Removing Screws Of Wheel Cover To Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

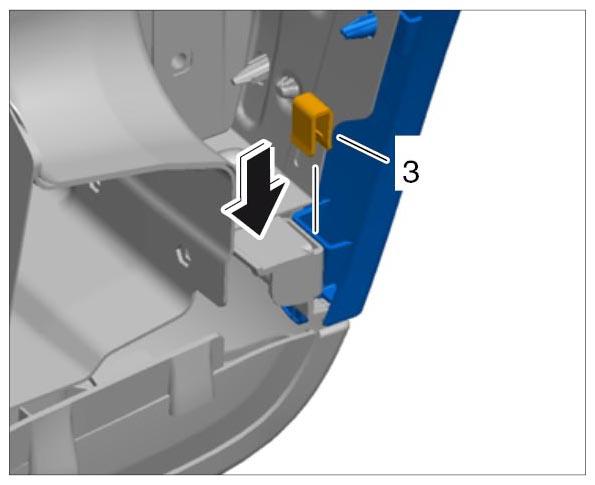

Fit safety clip -3- .

Fig 7: Fitting Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

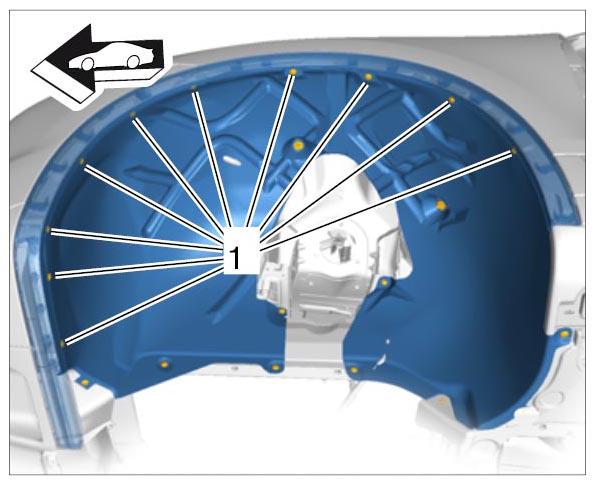

Secure front wheel housing liner at the wheel arch.
1. 6.1. Screw in fastening screws along the wheel arch -1- .

  Fig 8: Securing Wheel Housing Liner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
