Installing Wing Trim Panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
Information
- Always fit new grommets before installing the wing trim panel.
- Check fixing clips and replace if necessary.

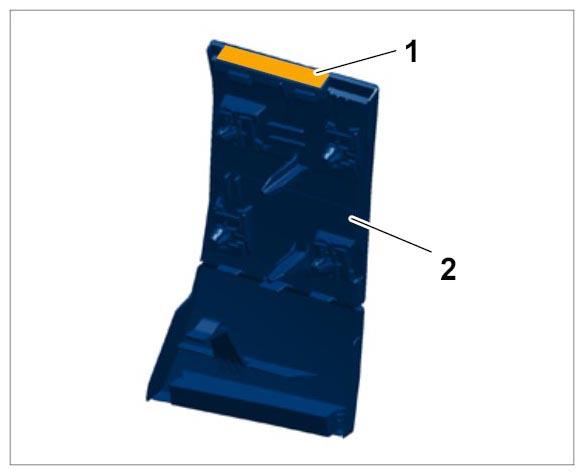

- If you intend to re-use the wing trim panel -2-
, replace double-sided adhesive tape -1-
at the top of the wing trim panel -2-
.
- 1.1. Remove old adhesive tape -1- completely from the wing trim panel -2- .
- 1.2. Carefully clean and de-grease the bonding area.
- 1.3. Stick new double-sided adhesive tape -1- on the top of the wing trim panel -2- and press it on firmly.

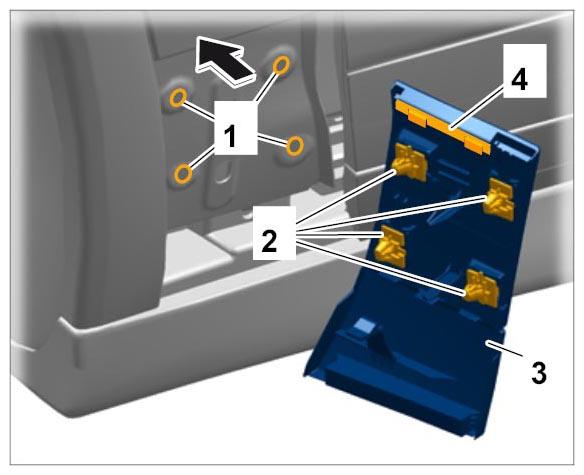

- Clip new grommets -1- into the body.
- Check fixing clips -2- for damage and check that they are fitted securely in the wing trim panel -3- .
- Carefully clean and de-grease bonding area -arrow- of the double-sided adhesive tape -4- on the wing.
- Pull protective strip off the double-sided adhesive tape -4- .
- Position wing trim panel -3- , clip it in and press firmly on the double-sided adhesive tape -4- to secure it to the wing.
