Removing Ventilation Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

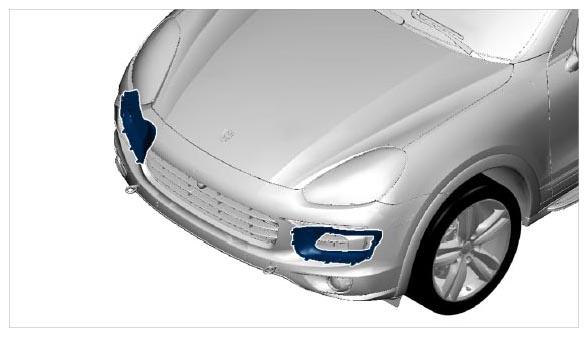

Fig 1: Identifying Ventilation Guide Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Keep the ventilation guide -7- tensioned towards the rear and release locking lugs in the sequence -1 to 6- .

Fig 2: Loosening Ventilation Guide From Front Air Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking lugs up using a plastic wedge -a- and pull ventilation guide -1- to the rear and out of the air grille -2- .

Fig 3: Removing Ventilation Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
