Installing Front Logo

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The fastening nuts for the logo must always be replaced.

Position logo -1- and base -2- .

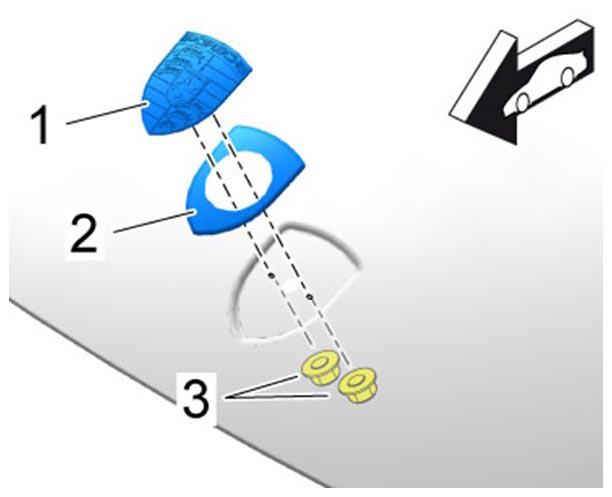

Fig 1: Fitting Front Logo Of Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace fastening nuts -3- .
Screw in fastening nuts -3- and tighten to the specified tightening torque → Tightening torque: 1 Nm (0.5 ftlb.) 0.3 Nm (0.2 ftlb.) .
