Removing Radiator Grille

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Keep radiator grille tensioned towards the rear and release locking lugs.

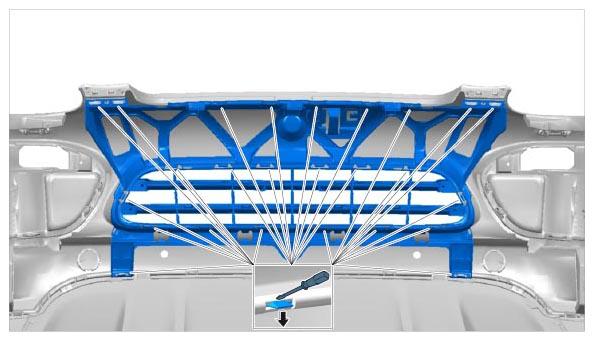

    Fig 1: Unclipping Radiator Grille
    G09940154Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove radiator grille from the front apron.
