Overload Protection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The vehicle must be stationary.
Rear lid or rear window must be open.
The trailer must be unhitched.
Connectors (and any adapters) must be removed from the socket.
There must not be any accessories on the ball hitch (e.g. ball protection cap, bicycle rack, etc.).

Swivelling out the trailer coupling
1. 1.1. Prerequisite
  Information
  - The vehicle must be stationary.
  - Rear lid or rear window must be open.
2. 1.2.
3. 1.3. To swivel out:
4. 1.4. Touch rocker switch -A- .
5. 1.5. [>>] The ball hitch moves automatically into operating position.
6. 1.6. The red LED in the rocker switch flashes until the operating position is reached.

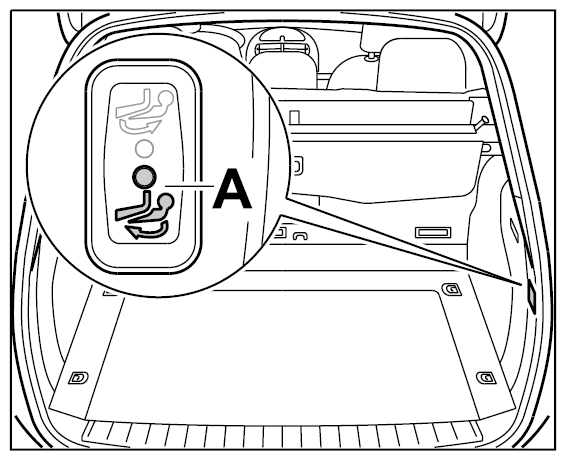

  Fig 1: Identifying Rocker Switch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Retracting the trailer hitch
1. 2.1. Prerequisite
  Information
  - The vehicle must be stationary.
  - Rear lid or rear window must be open.
  - The trailer must be unhitched.
  - Connectors (and any adapters) must be removed from the socket.
  - There must not be any accessories on the ball hitch (e.g. ball protection cap, bicycle rack, etc.).
2. 2.2.
3. 2.3. To retract:
4. 2.4. Touch rocker switch -A- .
5. 2.5. [>>] The ball hitch moves automatically into operating position.
6. 2.6. The red LED in the rocker switch flashes until the operating position is reached.

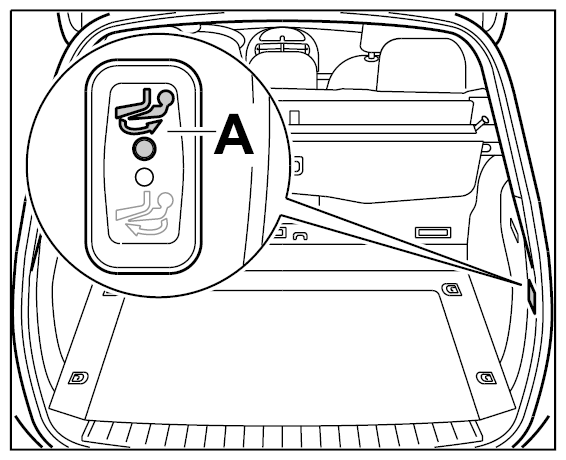

  Fig 2: Identifying Rocker Switch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
