Removing Tensioning Roller

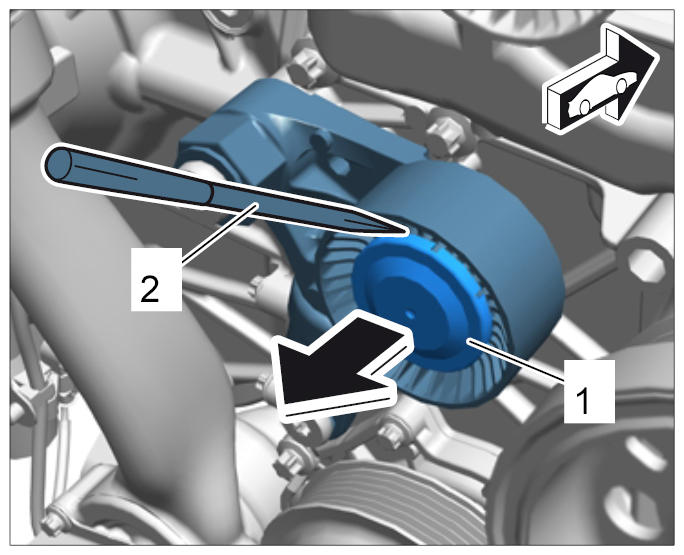

Fig 1: Removing Protection Cap On Tensioning Roller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The following tools are recommended for removal and installation. Tensioning Roller Tools:

1. Torque Wrench Nr. 90 Pos. 3
2. Ratchet head from tool kit Insert For Torque Wrench 9792
3. Internal Torx bit T50 with width across flats 8 mm

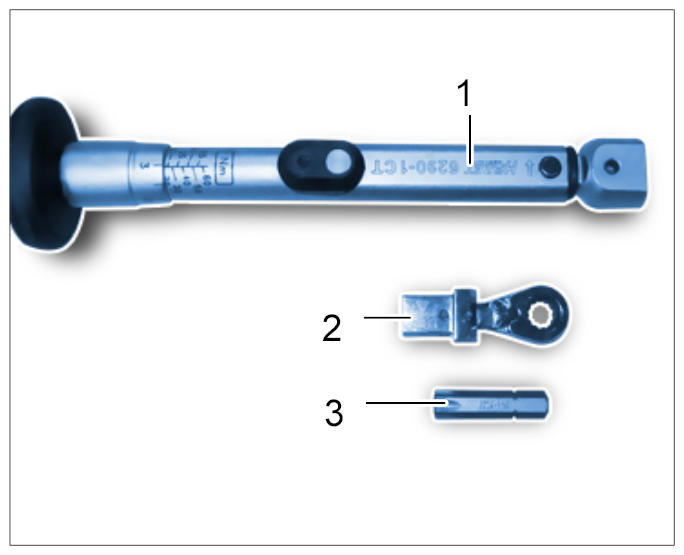

Fig 2: Identifying Tensioning Roller Tools

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Unscrew and remove internal Torx screw -1-  using the recommended tool and remove tensioning roller -2-  .

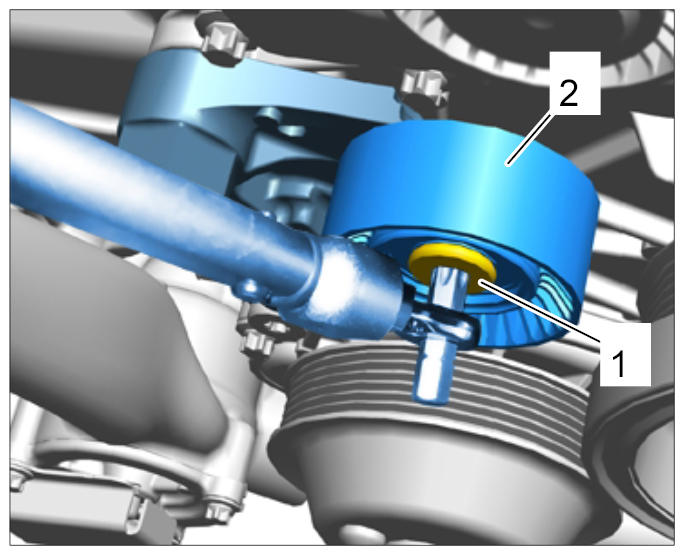

   Fig 3: Removing Tensioning Roller

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
