Installing Tensioning Roller

  1. Install tensioning roller -2-  .
    1. 1.1. Position tensioning roller -2-  on carrier for tension roller.
    2. 1.2. Fit fastening screw -1-  and tighten to Tightening Torque 23 Nm (17 ft. lbs.)  .

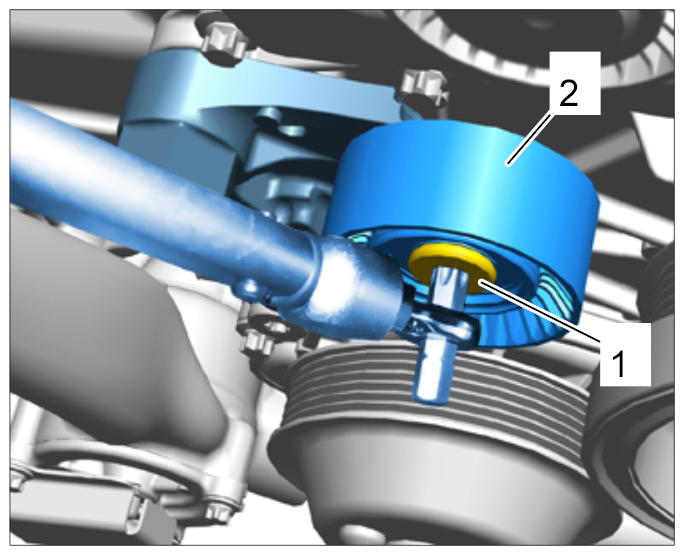

    2. Fig 1: Installing Tensioning Roller
    G10025036Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit protection cap on tensioning roller.
