Removing Console With Deflection Roller

Console With Deflection Roller:

1. Deflection Roller Console
2. Deflection Roller
3. External Torx Screws On Unit Carrier (M8)
4. External Torx Screw On Crankcase (M6)

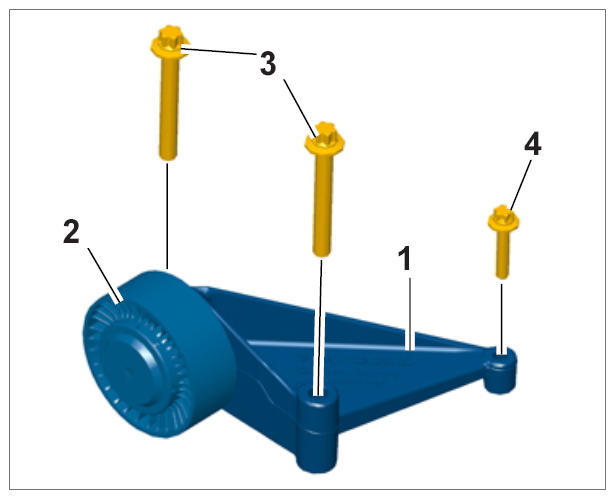

Fig 1: Identifying Deflection Roller Console, External Torx Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove -1-  console.
   1. 1.1. Unscrew three fastening screws -2 and 3-  .
   2. 1.2. Remove console.

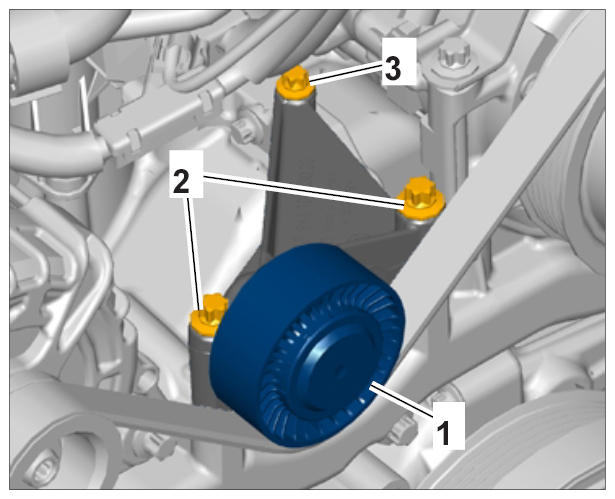

      Fig 2: Identifying Deflection Roller Console With Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
