Installing Console With Deflection Roller

  1. Install -1-  console.
    1. 1.1. Fit two fastening screws (M8) -2-  .
    2. 1.2. Fit and tighten one M6 fastening screw -3-  .

      Tightening Torque 13 Nm (9.5 ft. lbs.)

    3. 1.3. Tighten M8 fastening screws.

      Tightening Torque 23 Nm (17 ft. lbs.)

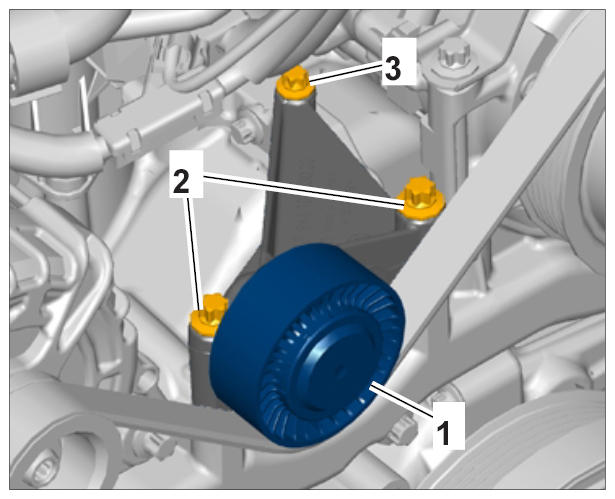

      Fig 1: Identifying Deflection Roller Console With Fastening Screws
      G10025020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
