Removing Vibration Damper

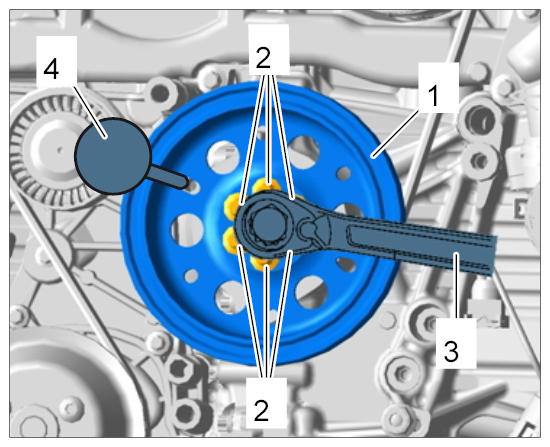

- Remove vibration damper -1-
.
- 1.1. Turn the vibration damper -1-
clockwise using special tool Turning Device 9773 -3-
until a staking bore in the vibration damper is flush with the crankcase bore.
- 1.2. Fix vibration damper -1-
in place with Locating Pin 9595/1 -4-
.
- 1.3. Unscrew and remove fastening screws -2-
.
- 1.4. Remove locating pin -4-
.
- 1.5. Remove vibration damper -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.6. Check dowel pin and vibration damper for damage (e.g. cracks, deformation) and replace components if necessary.
