Removing Belt Tensioner

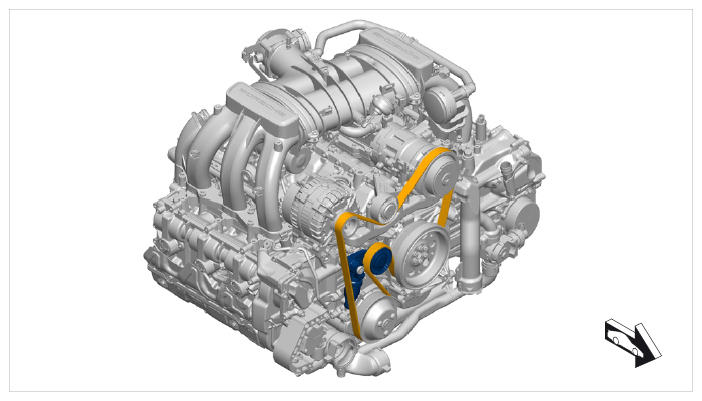

Installation Position Of Drive Belt:

Fig 1: Identifying Belt Tensioner Installation Position And Drive Belt Routing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

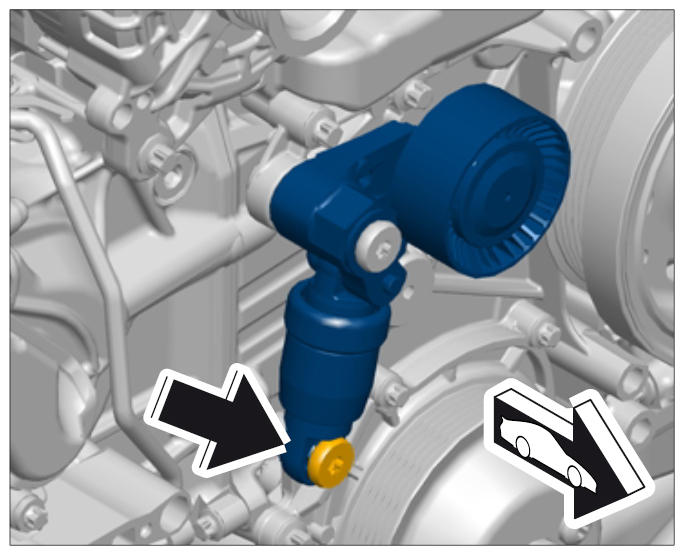

1. Unscrew and remove lower fastening screw -arrow-  .
   Fig 2: Locating Lower Belt Tensioner Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

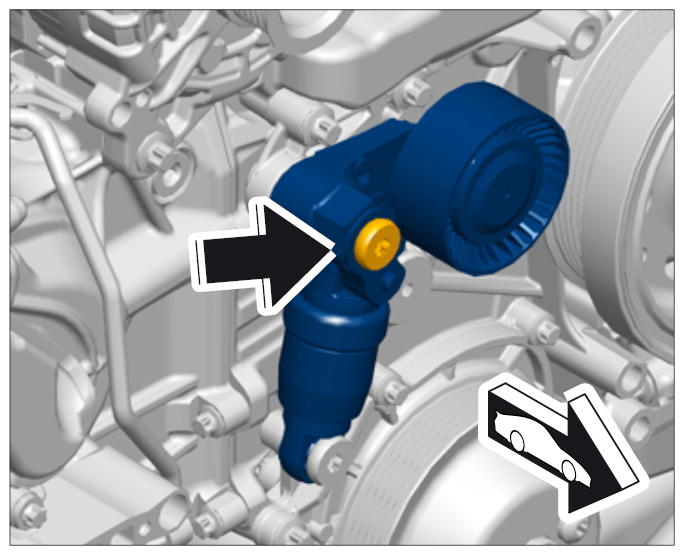

2. Unscrew and remove upper fastening screw -arrow-  .
   Fig 3: Locating Upper Belt Tensioner Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lift the belt tensioner up and off.
