Replacing Tensioner

Information

• When fitting the tensioner, make sure that the lettering can be read from outside  .
• The bellows must be facing upwards (see inscription)  .

1. Fit tensioner on the carrier for tension roller.

   Check That It Is Installed At The Correct Position  .

   1. 1.1. Fit fastening screw for securing tensioner to carrier for tension roller -arrow-  and tighten to Tightening Torque 23 Nm (17 ft. lbs.)  .

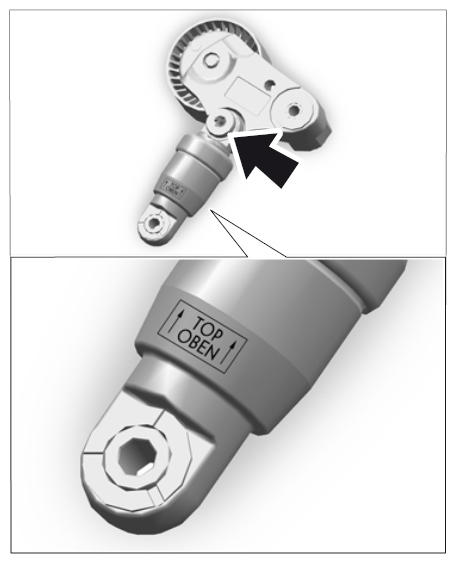

      Fig 1: Locating Tensioner Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
