Removing Flywheel For Porsche Doppelkupplung (PDK)

  1. Counter-Hold Tool VAS 6766 WE 1487 -1-  must be fitted on the transmission flange.
    1. 1.1. Position counter-hold tool on the flywheel ring gear.
    2. 1.2. Secure the counter-hold tool on the transmission flange using an M10 fastening screw -3-  and nut -4-  .

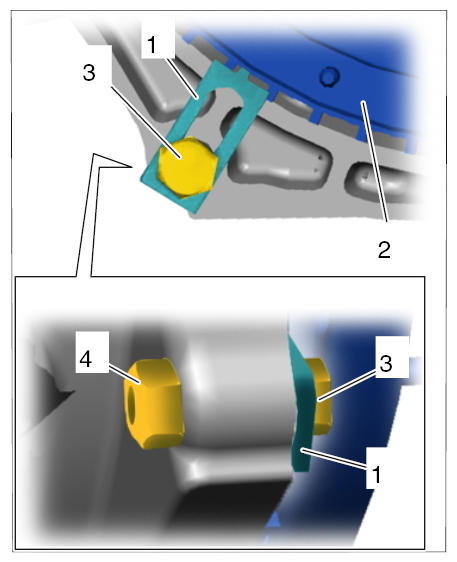

      Fig 1: Attaching Counter-Hold Tool Using Nut And Screws
      G10024993Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen fastening screws -2-  on the flywheel.

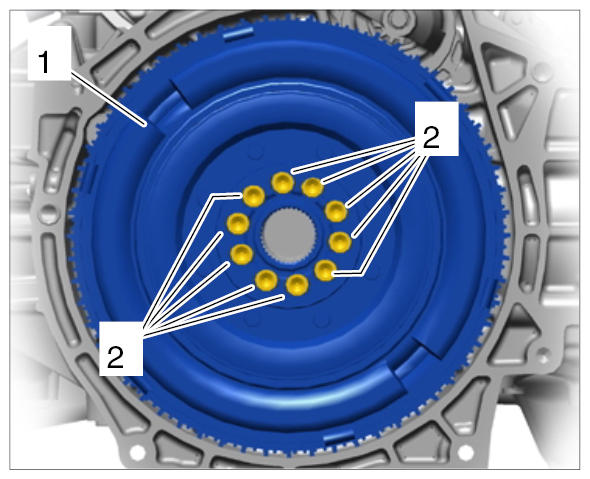

    Fig 2: Identifying Flywheel With Fastening Screws
    G10024994Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove counter-hold tool.
  4. Unscrew fastening screws and remove the flywheel from the crankshaft.
    1. 4.1. Replace fastening screws.
