Removing Flywheel

  1. Counter-Hold Tool T10172 -1-  must be secured to the dual-mass flywheel using two screws (M8 x 50) -2-  .

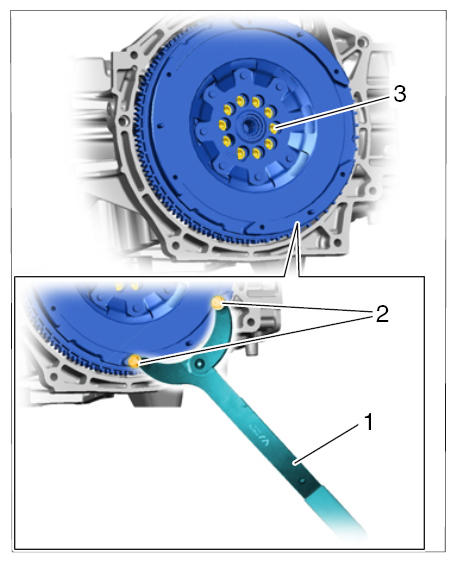

    Fig 1: Loosening Dual-Mass Flywheel
    G10024989Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen and unscrew fastening screws -3-  .

    The screws are micro-self-locking and must be replaced!

  3. Carefully remove the dual-mass flywheel (it is quite heavy - so be careful!).
