WM 131020 Removing And Installing Pistons (Except CAYMAN Gt4): Tools
| Designation | Type | Number | Description | |
|---|---|---|---|---|

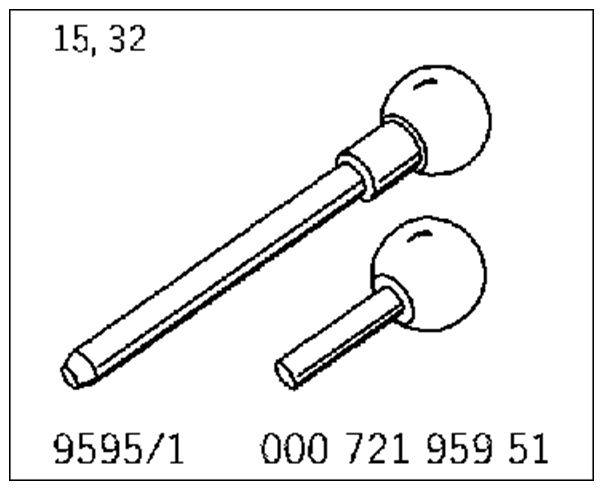

| Locating Pin | Special Tool | 9595/1 | ||
| Assembly Aid | Special Tool | 9598 | ||

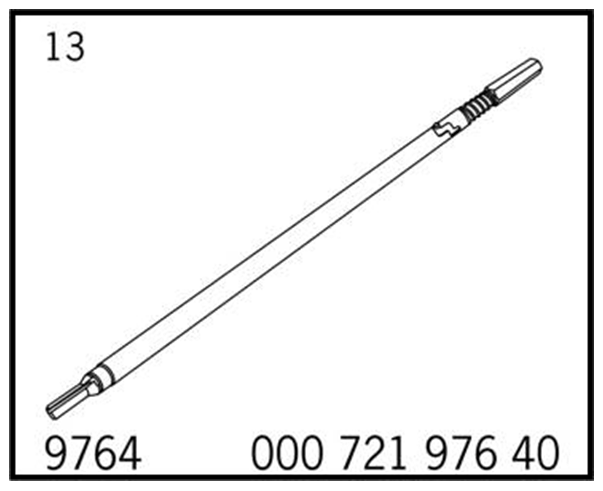

| Disassembly Tool | Special Tool | 9764 | ||

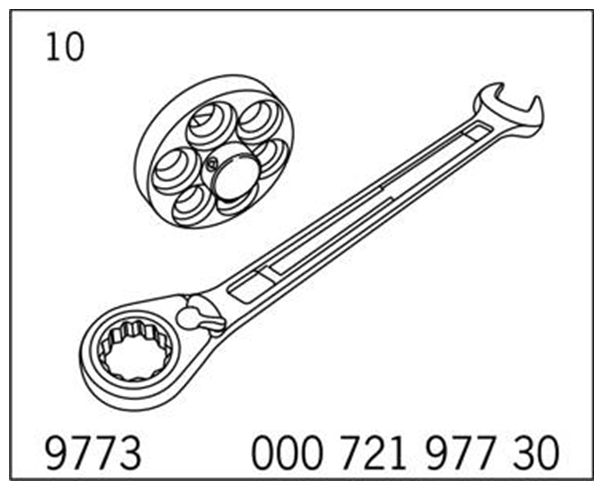

| Turning Device | Special Tool | 9773 | ||

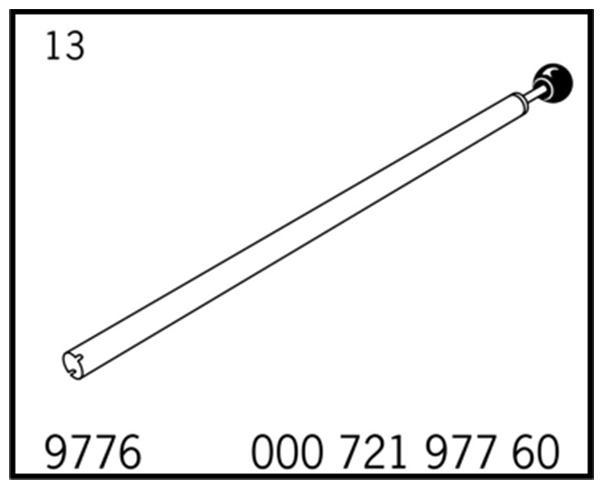

| Assembly Tool | Special Tool | 9776 | ||
| Disassembly Tool | Special Tool | 9777 | ||

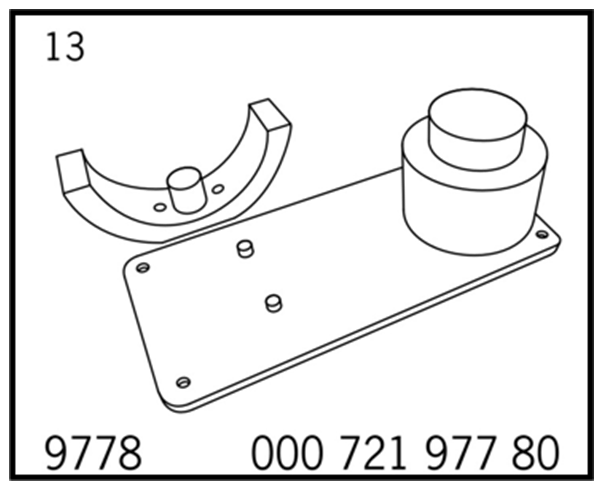

| Retaining Device | Special Tool | 9778 | ||

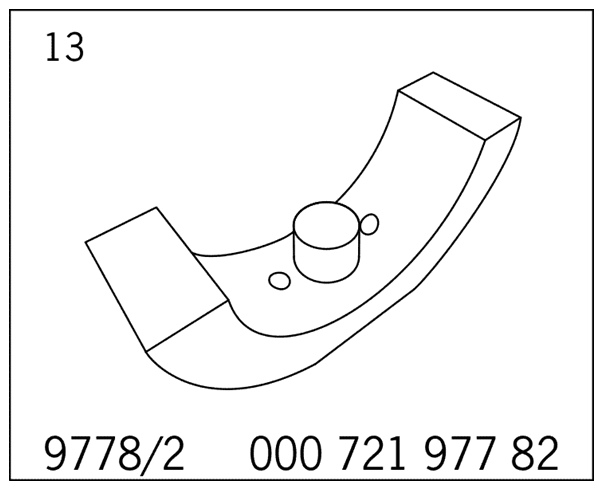

| Piston Receiving Element | Special Tool | 9778/2 | ||

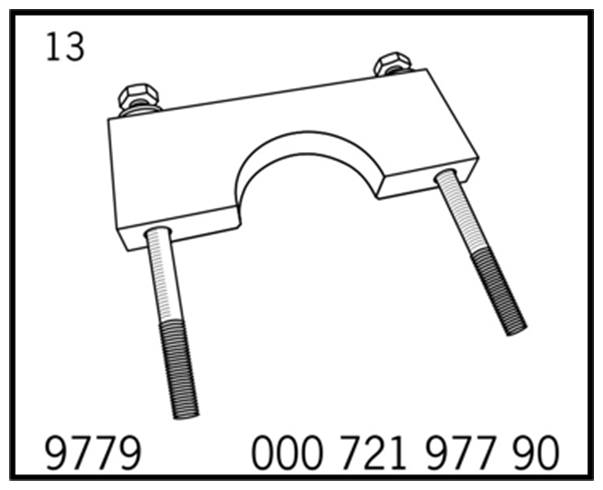

| Holding Bridge | Special Tool | 9779 | ||
| Centering Mandrel | Special Tool | 9782 | ||
| Assembly Aid | Special Tool | 9783 | ||

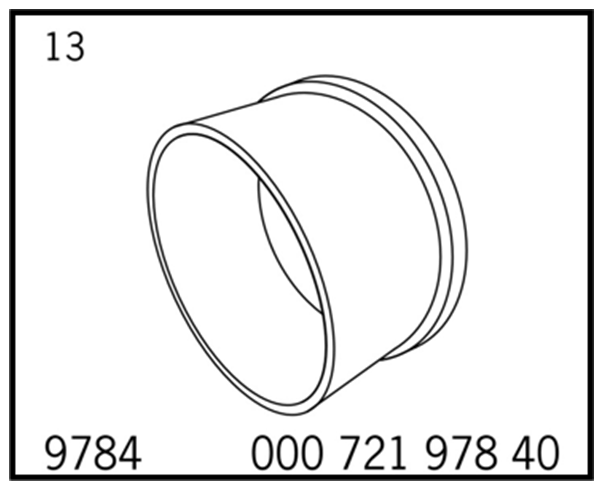

| Funnel | Special Tool | 9784 | ||
| Funnel | Special Tool | 9784/3 | ||

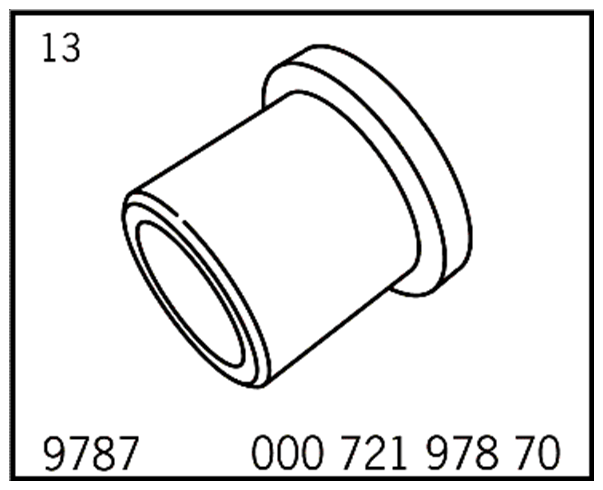

| Piston Assembly Aid | Special Tool | 9787 | ||
| Piston Assembly Aid | Special Tool | 9787/2 | ||

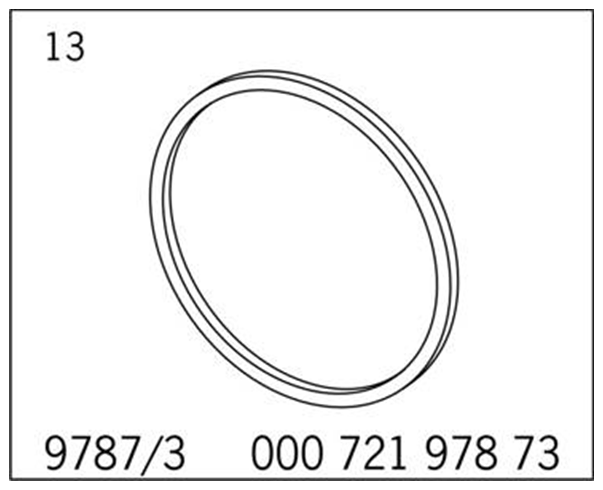

| Spacer Ring | Special Tool | 9787/3 | ||
| Assembly Aid | Special Tool | 9795 |

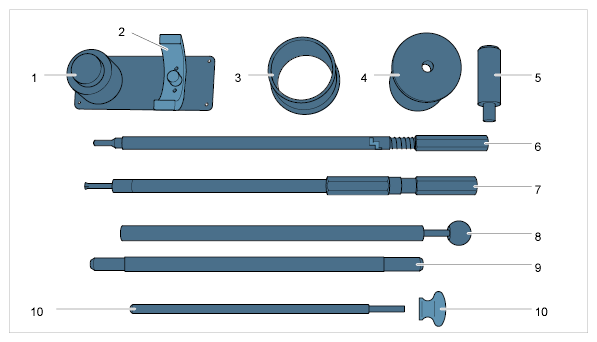

Tools Overview
- Retaining Device 9778 with piston receiving element with a diameter of 97 mm.
- Piston Receiving Element 9778/2 , diameter: 89 mm.

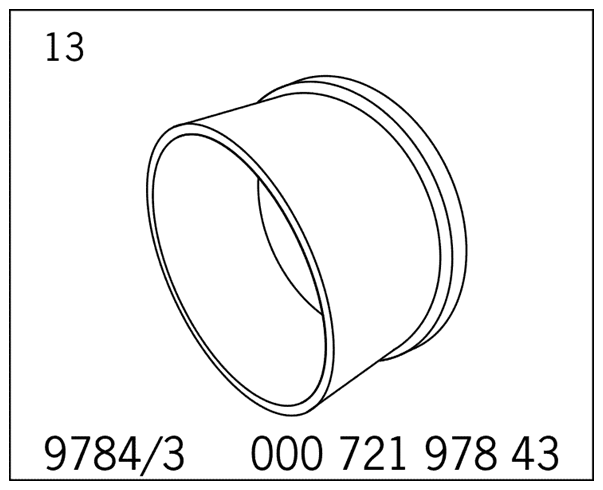

- Funnel 9784 or funnel 9784/3 for piston assembly, diameter: 97 mm or 89 mm.

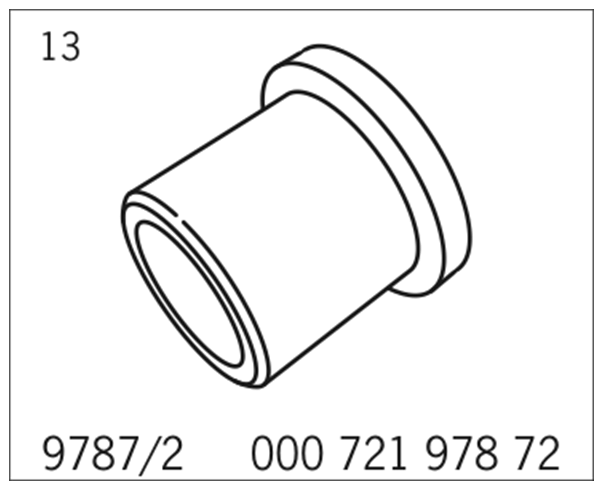

- Piston Assembly Aid 9787 , diameter: 97 mm or Piston Assembly Aid 9787/2 , diameter: 89 mm.

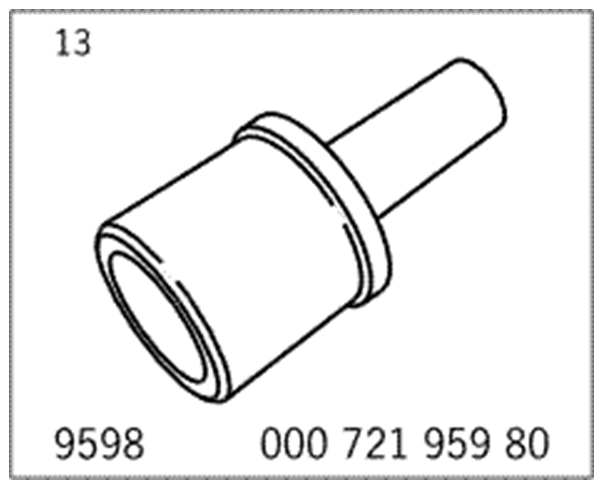

- Handle for Assembly Aid 9598 .
- Disassembly Tool 9764 for piston-pin circlips.

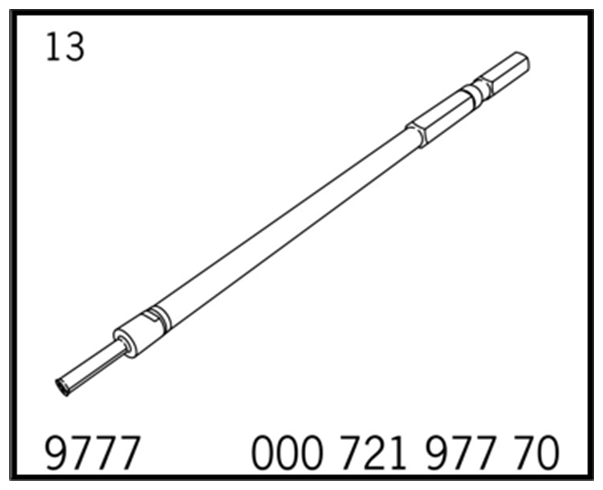

- Disassembly Tool 9777 and assembly tool for piston pins.
- Assembly Tool 9776 for piston-pin circlips.

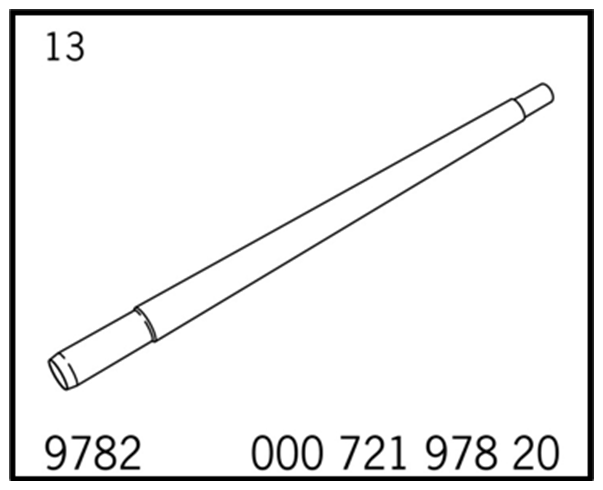

- Centering Mandrel 9782 for connecting rods and pistons.

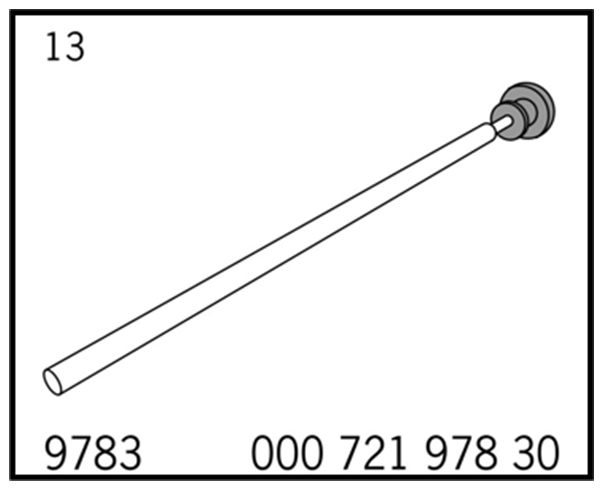

- Assembly Aid 9783 for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6).

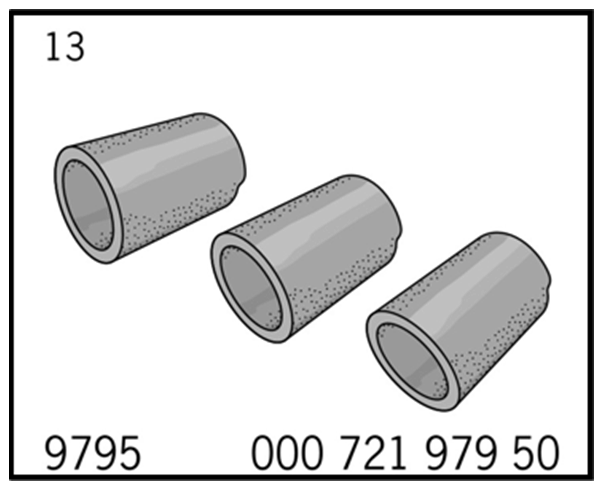

See Figure - Rubber sleeves, Assembly Aid 9795 for protecting cylinder linings (fitted on connecting rods for cylinders 1-3).
