Component Overview Of Positive Crankcase Vent Line

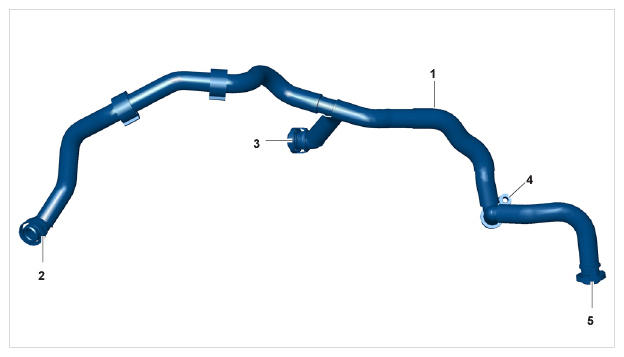

Fig 1: Identifying Positive Crankcase Ventilation Line, Cylinder Head, Oil Filler Neck, Oil Cooler Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Positive Crankcase Ventilation Line
2. Connection On Cylinder Head 1-3
3. Connection On Oil Filler Neck
4. Connection On Oil Cooler Bracket
5. Connection On Cylinder Head 4-6
