Oxygen Sensors

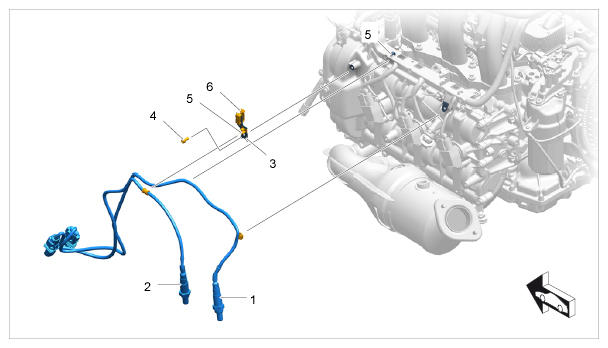

Fig 1: Identifying Oxygen Sensors (Bank 1-3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

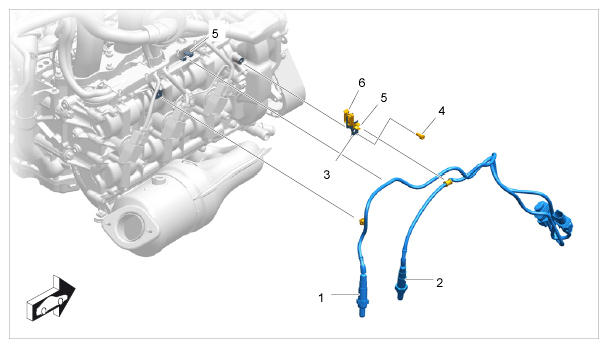

Fig 2: Identifying Oxygen Sensors (Bank 4-6)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Oxygen sensor downstream of catalytic converter → Tightening torque: 42 Nm (31 ftlb.)+5 Nm (+3.5 ftlb.)
2. Oxygen sensor upstream of catalytic converter → Tightening torque: 42 Nm (31 ftlb.)+5 Nm (+3.5 ftlb.)
3. Holder
4. Fastening screw → Tightening torque: 10 Nm (7.5 ftlb.)
5. Small retaining clip
6. Large retaining clip

Tightening torque using recommended tool

1. Torque wrench Nr.90 Pos.3  - suitable for 3/8 inch heads
2. Insert adapter with universal joint Nr.98-1 Pos.3
3. Open ring wrench Nr.96-3  , width across flats: 22 mm

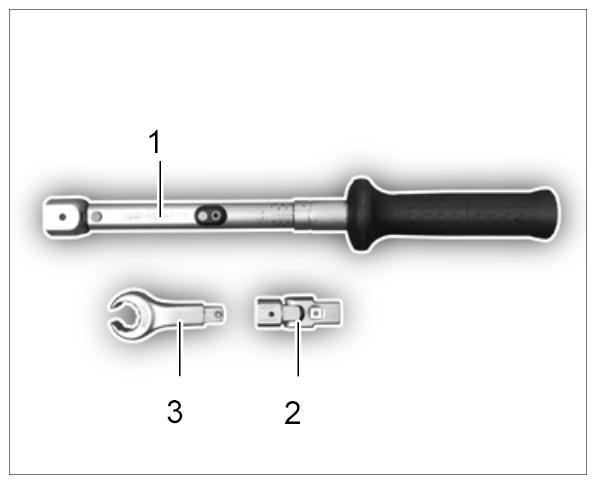

Fig 3: Identifying Oxygen Sensors Tools
