High-Pressure Pump

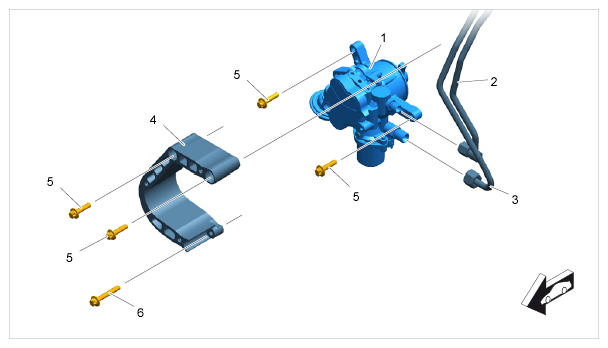

Fig 1: Overview Of High-Pressure Pump Component
G10024519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. High-pressure pump
  2. High-pressure line → Tightening torque: 20 Nm (15 ftlb.)
  3. Low-pressure line → Tightening torque: 20 Nm (15 ftlb.)
  4. Cover
  5. Screws, M6 x 25 → Tightening torque: 13 Nm (9.5 ftlb.)
  6. Screw, M6 x 40 → Tightening torque: 13 Nm (9.5 ftlb.)
