97 - Lines

Location	Description	Type	Basic value	Tolerance 1
Ground points on longitudinal member in front luggage compartment		Tightening torque	8.5 Nm (6 ftlb.)

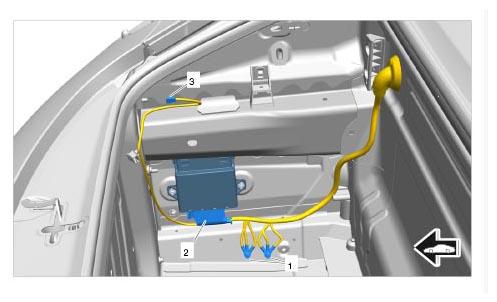

Main wire harness in luggage compartment, inner right

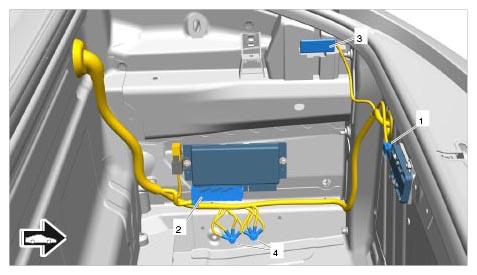

Main wire harness in luggage compartment, inner left

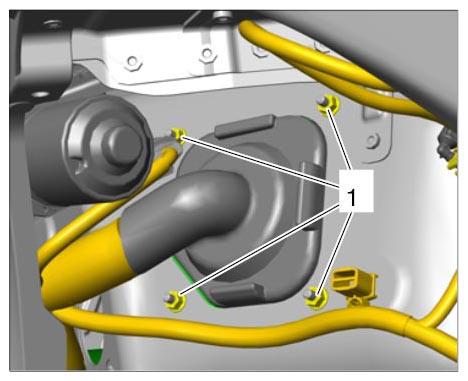

Fastening nut securing feed-through element in firewall	1	Tightening torque	5.5 Nm (4 ftlb.)
Feed-through element in firewall
Fastening nut securing cable shoe on B+ line for battery to power distributor	M8	Tightening torque	12 Nm (9 ftlb.)
Fastening nut securing fuse box to positive terminal	1	Tightening torque	9.7 Nm (7.5 ftlb.)
Loosening fuse box

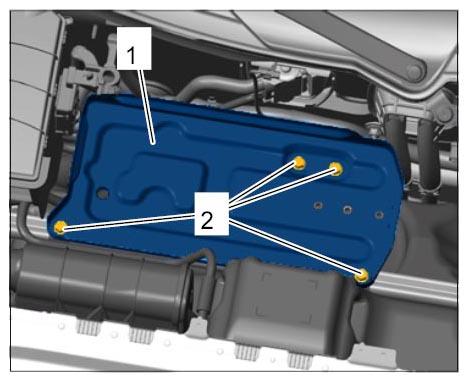

Battery console to body	2	Tightening torque	23 Nm (17 ftlb.)
Removing and installing battery console

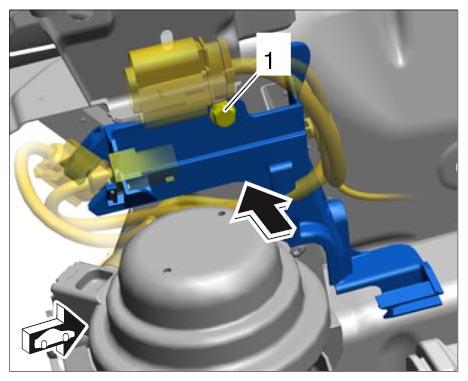

Fastening screw securing holder for wire harness in engine compartment to body	1	Tightening torque	9.7 Nm (7.5 ftlb.)
Securing holder
Fastening nut securing ground strap to body	M6	Tightening torque	8.5 Nm (6.5 ftlb.)

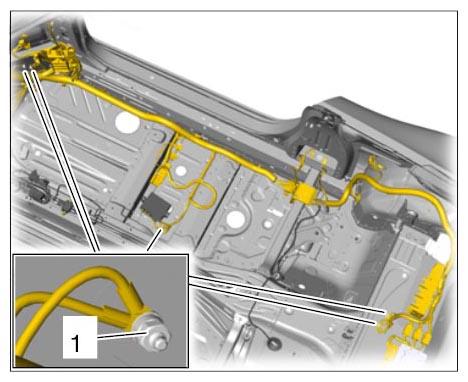

Ground straps for main wire harness, left

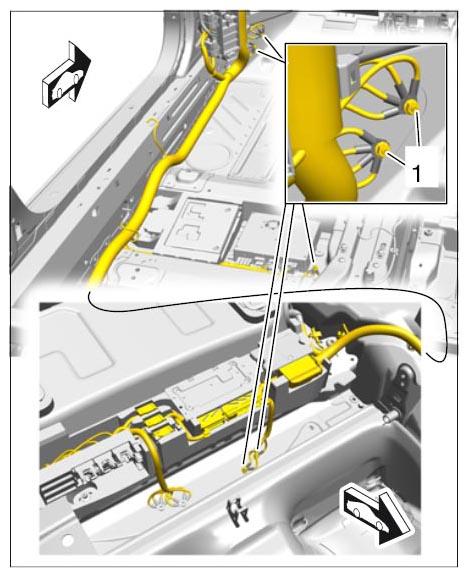

Ground straps for main wire harness, right
Fastening nut securing fuse box at the right to body	M6	Tightening torque	9.7 Nm (7.5 ftlb.)
Fastening nut securing power supply line to power distributor	M6	Tightening torque	12 Nm (9 ftlb.)
Fastening nut securing fuse box at the left to body	M6	Tightening torque	9.7 Nm (7.5 ftlb.)
Fastening nuts securing bracket for control unit for front-end electronics to body	M6	Tightening torque	3.5 Nm (2.5 ftlb.)
Fastening screw securing front ground strap to roof	M5	Tightening torque	2.5 Nm (2 ftlb.)
Cable duct to cylinder head	M8	Tightening torque	23 Nm (17 ftlb.)
Electric line for term. 50 to starter	M6	Tightening torque	6.5 Nm (5 ftlb.)
Ground straps to valve cover	M6	Tightening torque	10 Nm (7.5 ftlb.)
Threaded connection for mid-range loudspeaker		Tightening torque	3 Nm (2 ftlb.)
Ground strap to body		Tightening torque	15 Nm (11 ftlb.)
Fastening screw securing ground strap to engine, M8		Tightening torque	23 Nm (17 ftlb.)
Fastening screw securing ground strap to body, M8		Tightening torque	23 Nm (17 ftlb.)
Fastening nuts (M8) for battery lines in power distributor		Tightening torque	12 Nm (9 ftlb.)	+/-1 Nm (+/- 0.5 ftlb.)
Fastening nuts (M5) for fuse element in power distributor		Tightening torque	5 Nm (3.5 ftlb.)	+/-1 Nm (+/- 0.5 ftlb.)
Fastening nuts (M8) for cutoff relay		Tightening torque	12 Nm (9 ftlb.)	+/-1 Nm (+/- 0.5 ftlb.)

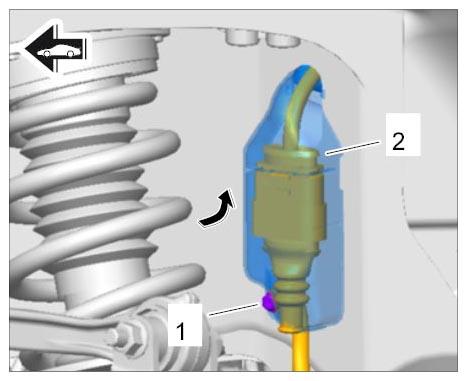

Fastening nut for cover on connection point for rear ABS	1	Tightening torque	2.5 Nm (2 ftlb.)
Securing cover
Threaded joint for alarm siren holder on compressor holder		Tightening torque	2.8 Nm (2 ftlb.)
Threaded joint for compressor holder		Tightening torque	2.8 Nm (2 ftlb.)

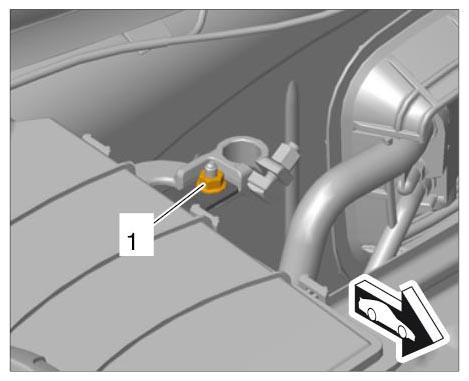

Threaded joint for terminal clamp to battery		Tightening torque	6.5 Nm (5 ftlb.)	+/-0.5 Nm (+/- 0.5 ftlb.)
Threaded joint securing retaining bar to body		Tightening torque	23 Nm (17 ftlb.)
Battery mount		Tightening torque	23 Nm (17 ftlb.)
