94 - Lights, Lamps, Switches - Exterior
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening nuts securing headlight mounting to body | Tightening torque | 8 Nm (6 ftlb.) | |||
| Gap dimension -x- brake light switch | Gap between sensor and counter plate | Adjustment value | 1.5 mm | +/-0.5 mm | |
| Clamping screw for steering-column switch | Tightening torque | 6 Nm (4.5 ftlb.) | |||

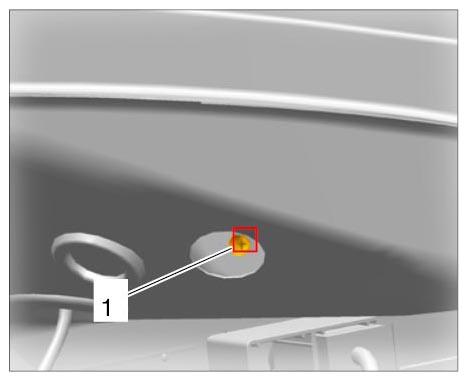

| Fastening screw for tail light | Tightening torque | 2.0 Nm (1.5 ftlb.) | +/-0.2 Nm (+/- 0.1 ftlb.) | ||
|
Removing tail light |
|||||
| Threaded joint for angle sensor on holder | Tightening torque | 3.4 Nm (2.5 ftlb.) | |||
| Threaded joint for connecting link (angle sensor) on wishbone | Tightening torque | 4.5 Nm (3.5 ftlb.) | |||
