90 - Instruments
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws for instrument cluster | Tightening torque | 3.2 Nm (2 ftlb.) | |||
| Fastening nut for horn | Tightening torque | 10 Nm (7.5 ftlb.) | |||
| Fastening screws for stopwatch | Tightening torque | 1.7 Nm (1.5 ftlb) | |||
| Fastening screw securing front apron to body, bottom | Item 2 | Tightening torque | 3.2 Nm (2 ftlb.) | +/-0.6 Nm (+/- 0.5 ftlb.) | |
|

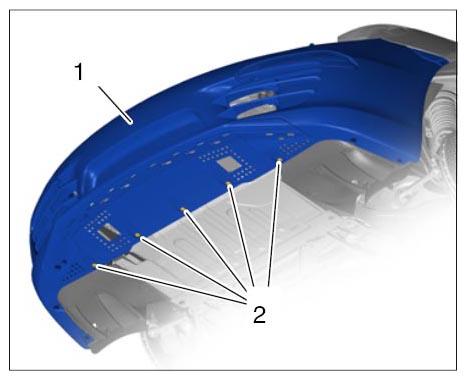

Bottom of front apron (shown on the 991) |
|||||
