Removing Wing Joining Plate

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

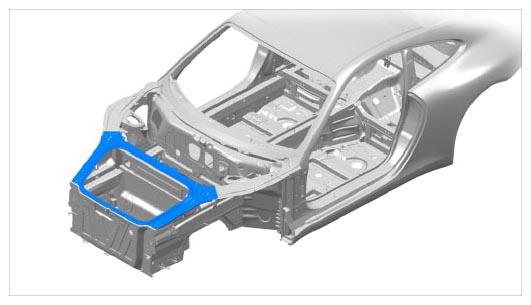

  Fig 1: Identifying Front Wing Joining Plate

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Drill through clinch points using a drill bit. → Diameter: 6.5 mm  .
2. Drill through punch rivets -A-  using a twist drill Nr.201  .

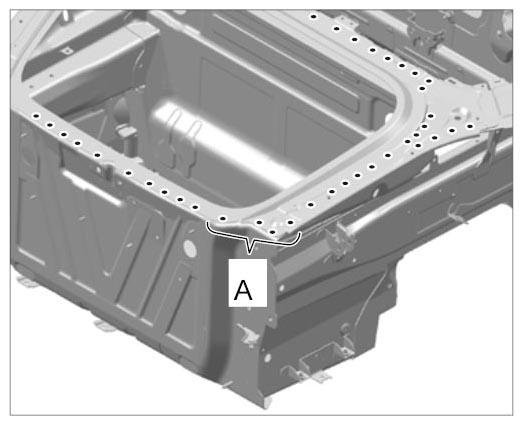

   Fig 2: Identifying Wing Joining Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat up bonding areas using a hot-air gun.
   Fig 3: Identifying Wing Joining Plate Bonding Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove wing joining plate.
